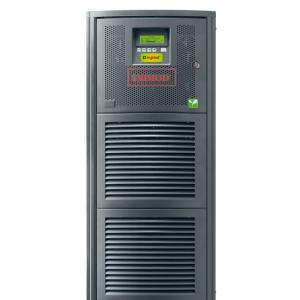

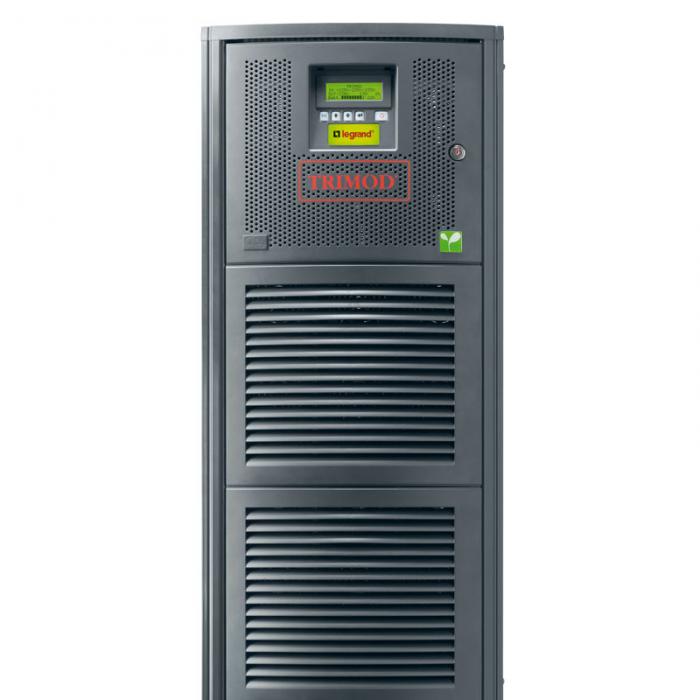

General features TRIMOD HE
Three-phase modular UPS systems
Power from 10 to 80 kW NEW
VFI-SS-111 on-line double conversion
High efficiency up to 96%
Power factor 1
Adaptable, expandable and redundant solutions (configuration phase In/Out, 3-1)

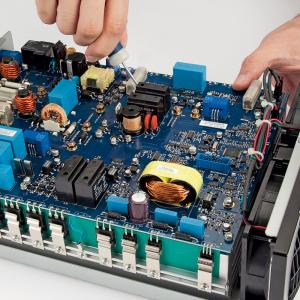

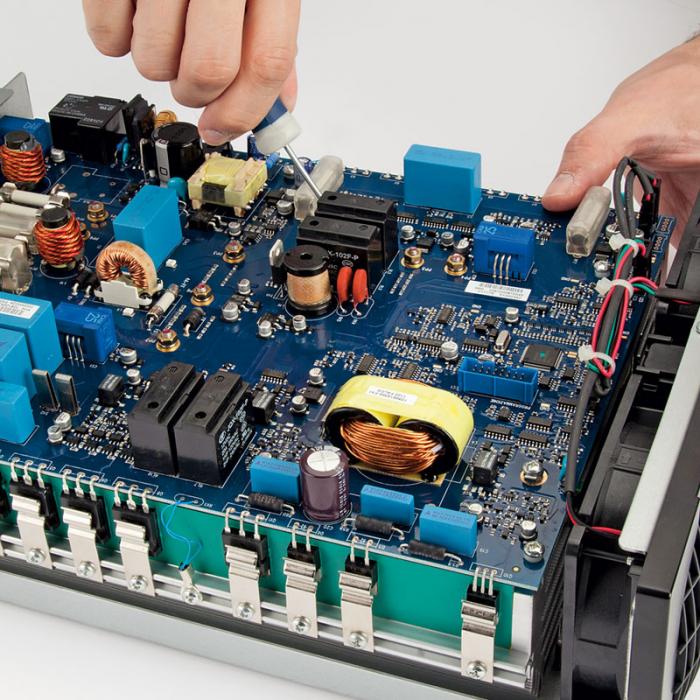

Easy and quick maintenance
Low environmental impact
Diagnostic, monitoring, historical data, parameter setting by display
Low size and foot print
New cabinet sizes to increase backup time, to improve scalability and to optimize the system
Functions
Multi control board function NEW
Dual input function NEW

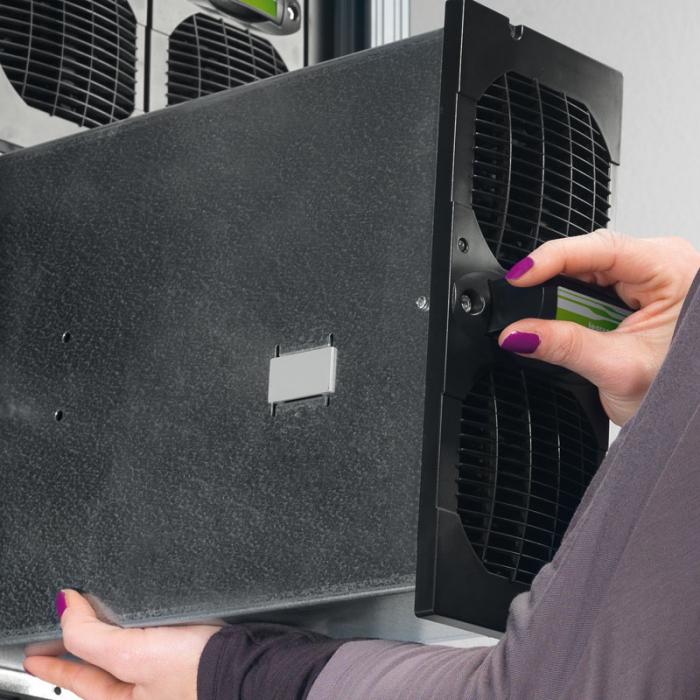

Plug & Play technology NEW
Menu available in 7 languages
Frequency converter fin 40-70Hz fout 50/60Hz (can be selected by the user)
Operates with a power-supply unit
Three independent output phases
Eco Mode
EPS Mode
Adjustable output voltage with 1V intervals (190÷245V)
Bypass activation speed control
Events log with date and time
Overall historical data and for each individual power module
Automatic recognition of the power modules
Nominal power (kVA) 10
Active power (kW) 10
Module power (kW) 3,4
Classification On-Line double conversion VFI-SS-111
System Modular, expandable and redundant UPS system
Input specifications
Input voltage 380, 400, 415 3PH+N+PE (or 220, 230, 240 1PH)
Input frequency 45-65 Hz (43,0 ÷ 68.4 Hz)
Input voltage range 400V +15%/-20% - 230V +15%/-20%
THD input current < 3% ( at full load)
Compatibility with power supply units Si
Input power factor > 0,99
Output Specifications
Output voltage 380, 400, 415 3F+N+PE (o 220, 230, 240 1F)
Efficiency Up to 96%
Efficiency in Eco mode 99%
Nominal output frequency 50/60 Hz selectable by the user ±2 % (standard), ±14 % (extended)
Crest factor 3:1
Waveform Sinusoidal
Output voltage tolerance ±1%
THD output voltage <1%
Overload capacity 10 minutes at 115%, 60 seconds at 135%
Bypass Automatic bypass (static and electromechanical) and manual maintenance bypass
Batteries
Battery module Plug & play
Battery series type/voltage VRLA - AGM / 240 Vdc
Operating time Configurable
Battery charger Smart charge technology. 3-stage advanced cycle
Communication and management
Display and signals 4 x 20-character lines, 4 menu navigation buttons,
LED multi-colour status indicator, alarms and audio signals
Communication ports 2 RS232 serial ports, 1 logical gate, 5 ports with dry contacts, 1 slot for interfaces
Backfeed protection NC/NO auxiliary contact
Emergency Power Off (EPO) Yes
Remote management Available
Physical Specifications
Height (A-B) 1650 - 1370
Width 414
Depth 628
Installed power modules 3
Installable battery drawers (A-B) Up to 16 - Up to 12
Net weight kg (A-B) 155 - 120
Ambient Conditions
Operating temperature/humidity 0 - 40°C / 0 - 95% non condensing
Protection rating IP21
Maximum audible noise at 1 m from the unit (dBA) 58-62
Conformity
Reference product standards EN 62040-1, EN 62040-2, EN 62040-3
