Battery pack SBS130 - 4 PCS
ex-works Bucharest

Microprocessor controlled Line Interactive Technology
Boost and Buck Automatic Voltage Regulation (AVR)
LCD or LED Display Panel
Advanced Battery Management (ABM)
Input Frequency auto sensing ( 50/60 Hz )
Auto restart after mains recovery
Charging during switched off mode
Short circuit and overload protection
Cold Start Function
USB Communication Interface and Remote Monitoring Software*
Modem/Phone line protection*
Compact size and user friendly operation
*Available at AP models only

CyberPower  UT2200E provides home and office users a reliable battery backup and safeguard office PCs, network communication equipment, and other electronic devices from surges, spikes, brownouts and other power incidents.

The product is generator-compatible, which allows users flexible application scenario planning for power outages. The built-in Automatic Voltage Regulation (AVR) stabilizes the AC signal allowing the UPS to deliver power at safe voltage levels to all connected equipment without resorting to battery power.

FEATURES
Line-interactive UPS Topology
Generator Compatible
Simulated Sine Wave Output
Automatic Voltage Regulation (AVR)
Overload Protection
Surge and Spike Protection
EMI and RFI Filtration
Phone/ Fax/ Modem/ DSL/ Network Protection
LED Status Indicator
USB Connectivity Port
Configurable Alarm
PowerPanel® Management Software
Tower Form Factor


On‑Line double conversion UPS that can be used in both tower and rack configurations
The main parameters of the system and the status of the UPS, including the battery charge level and faults, are displayed on
the LCD screen.
Additional battery cabinets are available to increase the backup time of the UPS. A charger can be added in all battery cabinets for fast, safe charging.
With the reversible screen, the Daker DK UPS can be used in both tower and 19» rack configuration.
The integrated communication software not only controls the UPS and its switch-off if there is a malfunction, and enables the user to test the main functions remotely,communicate via SNMP/Internet/network adaptor and access the functions of the UPS via the Internet, but can also send the user an SMS if specific events occur.
The internal extension connector enables a WEB/SNMP card or a relay interface to be installed which provides insulated contacts for applications on industrial control panels or remote alarm panels.
If there is an electronic fault, overload, overheating or for scheduled maintenance operations, the automatic or manual (optional) bypass ensures continuity of the power supply for critical loads. A bypass switch is available for maintenance.






Modular UPS redundant and upgradable up to 10kVA with perfomance and functions at the top of their category.
All models have a microprocessor control card that can be configured on the display, by modules powered by 1250 VA each, and by battery kits that contain no. 3x9Ah batteries
The single cabinet and 19 inch rack models issue a power from 1250 to 5000 VA, they can house a maximum of 4 power boards and 4 battery kits. Additional batteries can be stored in specific cabinets, which can be easily connected thanks to an back up time upgrading pre-setting. The range is completed with products made of two cabinets; the first cabinet can house up to 8 power modules, each up to 1250 VA, reaching a maximum power of 10kVA. In the second cabinet it is possible to insert up to 10 battery kits and an additional battery charger. Other battery cabinets identical to the one supplied can be added in order to further upgrade back up time.

Nominal power (VA) 2500
Active power (W) 1750
Max expandability (VA) 5000
Max expandability (W) 3500
Technology On-line double conversion (VFI-SS-111)
UPS architecture Modular, Expandable, N+X Redundant with 1250 VA power boards in a single cabinet

Input
Input nominal voltage 230 V
Input voltage range 184 V ÷ 264 V at 100% of the load
Minimum network operating voltage 100 V at 50% of the load
THD Input current ‹ 3%
Input Power Factor › 0.99 from 20% of the load
Input frequency 50 Hz / 60 Hz ± 2% autosensing

Output
Output voltage 230 V ± 1%
Output frequency 50 Hz / 60 Hz synchronised
THD Output voltage ‹ 1% with non-linear load
Waveform Sinusoidal
Crest Factor 3,5 : 1
Performance when connected to the mains 92% at 100% of the load
Allowed overload 300% for 1 sec. – 200% for 5 sec. – 150% for 30 sec.

Back up time
Back up time (min) 13
Back up time expandability Yes

Equipment
Bypass: Static and Electromechanical, automatic and internally synchronised (due to overload or operating fault).
Signals and Alarms: Large 4-line alphanumeric display, multi-colour status indicator, audio signal
Communication Ports: no.1 RS 232 port, no.2 logical gates
UPS Communicator Software: Can be downloaded free of charge (after requesting the activation code)
Protections:
- Electronic protections against overloads, short-circuits and excessive battery discharge.
- Operation stops when the back up time ends. In-rush current limiter at start-up.
- Sensor to connect the neutral cable correctly.
- Back-feed protection (electrical safety insulation of the input plug during battery-based operation). EPO contact
(complete shutdown in the event of an emergency)
IN/OUT mains connection: Standard German / Clamp connector with universal multiple socket outlet (Italian/German standard)

Mechanical features
Net weight (kg) 34
Dimensions (H x W x D) (mm) 475 x 270 x 570
Installed power boards 2
Free power expansion slots 2
Installed battery kits 2
Free back up time expansion slots 2

Environmental conditions
Operating temperature (°C) 0÷40
Degree of protection IP21
Relative humidity (%) 20÷80 non-condensing
Noise level at 1 m (dBA) ‹ 40
Certifications Standards EN 62040-1, EN 62040-2, EN 62040-3

General features TRIMOD HE
Three-phase modular UPS systems
Power from 10 to 80 kW NEW
VFI-SS-111 on-line double conversion
High efficiency up to 96%
Power factor 1
Adaptable, expandable and redundant solutions (configuration phase In/Out, 3-1)
Easy and quick maintenance
Low environmental impact
Diagnostic, monitoring, historical data, parameter setting by display
Low size and foot print
New cabinet sizes to increase backup time, to improve scalability and to optimize the system

Functions
Multi control board function NEW
Dual input function NEW
Plug & Play technology NEW
Menu available in 7 languages
Frequency converter fin 40-70Hz fout 50/60Hz (can be selected by the user)
Operates with a power-supply unit
Three independent output phases
Eco Mode
EPS Mode
Adjustable output voltage with 1V intervals (190÷245V)
Bypass activation speed control
Events log with date and time
Overall historical data and for each individual power module
Automatic recognition of the power modules

Nominal power (kVA) 10
Active power (kW) 10
Module power (kW) 3,4
Classification On-Line double conversion VFI-SS-111
System Modular, expandable and redundant UPS system

Input specifications
Input voltage 380, 400, 415 3PH+N+PE (or 220, 230, 240 1PH)
Input frequency 45-65 Hz (43,0 ÷ 68.4 Hz)
Input voltage range 400V +15%/-20% - 230V +15%/-20%
THD input current < 3% ( at full load)
Compatibility with power supply units Si
Input power factor > 0,99

Output Specifications
Output voltage 380, 400, 415 3F+N+PE (o 220, 230, 240 1F)
Efficiency Up to 96%
Efficiency in Eco mode 99%
Nominal output frequency 50/60 Hz selectable by the user ±2 % (standard), ±14 % (extended)
Crest factor 3:1
Waveform Sinusoidal
Output voltage tolerance ±1%
THD output voltage <1%
Overload capacity 10 minutes at 115%, 60 seconds at 135%
Bypass Automatic bypass (static and electromechanical) and manual maintenance bypass

Batteries
Battery module Plug & play
Battery series type/voltage VRLA - AGM / 240 Vdc
Operating time Configurable
Battery charger Smart charge technology. 3-stage advanced cycle

Communication and management
Display and signals 4 x 20-character lines, 4 menu navigation buttons,
LED multi-colour status indicator, alarms and audio signals
Communication ports 2 RS232 serial ports, 1 logical gate, 5 ports with dry contacts, 1 slot for interfaces
Backfeed protection NC/NO auxiliary contact
Emergency Power Off (EPO) Yes
Remote management Available

Physical Specifications
Height (A-B) 1650 - 1370
Width 414
Depth 628
Installed power modules 3
Installable battery drawers (A-B) Up to 16 - Up to 12
Net weight kg (A-B) 155 - 120

Ambient Conditions
Operating temperature/humidity 0 - 40°C / 0 - 95% non condensing
Protection rating IP21
Maximum audible noise at 1 m from the unit (dBA) 58-62
Conformity
Reference product standards EN 62040-1, EN 62040-2, EN 62040-3

Online Double Conversion Technology
3 Phase Input & 1 Phase Output
High Frequency and True Double-Conversion
DSP Digital Control Technology
Wide Input Voltage Range (110V-300V)
Output Power Factor 0.9
Optimized Battery Configuration 192V/240V
Cold Start
50/60 Hz Frequency Adaptive
ECO Mode Operation For Energy Saving
50/60Hz Frequency Converter Mode
Selectable Output Voltage via LCD
Selectable Battery Shutdown Voltage (EOD) via LCD
Selectable Input Mode LCD (3/1 or 1/1)
Advanced Battery Management (ABM)
Short Circuit and Overload Protection
Automatically Charging Battery at UPS Off Mode
Auto Control Fan Speed
Standard RS232 Communication Port

Technical data:
Capacity: 10KVA / 9KW
Input

• Nominal voltage:
  • 3/1: 360/380/400 / 415VAC
  • 1/1: 208/220/230 / 240VAC
• Voltage range:
  • 3/1: half load (190-520) +/- 5VAC full load (277-520) +/- 5VAC
  • 1/1: half load (110-300) +/- 5VAC full load (160-300) +/- 5VAV
• Frequency: 40-70Hz +/- 0.5% (auto-sensing)
• Power factor: 3/1 ≥0.95, 1/1 ≥0.99
• bypass
• Voltage range: 160V nominal output voltage + 32V
• Frequency: 50 / 60Hz +/- 5Hz

Output

• Voltage: 208/220/230 / 240VAC (LCD setting)
• Voltage regulation: +/- 1%
• Frequency: Synchronized on AC, 50 / 60Hz on battery
• Wave: pure sinus
• Crest factor: 3: 1

Efficiency
AC Mode> 93%
Mod battery> 92%
ECO mode> 98%
Size: 262 * 580 * 628mm
Weight: 40Kg

General features
Single-phase UPS
VI line-interactive
Boost and Buck AVR converter
Control via microprocessor
The battery is easy to replace
USB and RS232 communication port
LAN / SNMP connectivity

Functions
Adjustable output voltage
Built-in self-test function
Advanced management of battery discharge
Protection from voltage peaks and noise filter
Protection from overload and short-circuits
Cold-start function
Internet Modem / LAN protection
Wiring fault indicator

Nominal power (VA) 800
Active power (W) 400
Technology Line interactive VI
Waveform Pseudo-sinusoidal
Input characteristics
Input voltage 230 V
Input frequency 50-60 Hz +/-5Hz
Input voltage range 160 V - 290 V
Output characteristics
Output voltage 230 V ± 10 %
Output frequency (nominal) 50/60 Hz ±1 %
THD of output voltage < 3% with linear load
Batteries
Number of batteries 1
Battery range type/voltage 12V - 9Ah
Communication and management:
Screen and signalling: One button and 2; LEDs for real-time control
Telephone protection RJ 11/RJ 45
Remote control Available
Mechanical characteristics
Dimensions H x W x D (mm) 171 x 95 x 349
Net weight (kg) 7 .5
Ambient operating temperature (°C) 0 to 40°C
Relative humidity (%) 0 to 95%
Noise at 1 m (dBA) < 40
Certifications Reference product standards EN 62040-1, EN 62040-2, EN 62040-3

CyberPower BU600E provides home and office users a reliable battery backup and safeguards office PCs and other electronic devices from surges, spikes, brownouts and other power irregularities. As all CyberPower UPSs are designed with fireproof plastic housing, this product provides an outstanding fire-resistant capability (as compared to similar products) to minimize possible damage to valuable assets in case of fire.

The innovative Battery Management Technology significantly increases battery efficiency and promotes increased battery performance and longer battery life. Configurable alarm allows users to switch the audible alarm on or off during battery mode to avoid unnecessary disturbances.
FEATURES

• Line-interactive UPS Topology
• Generator Compatible
• Simulated Sine Wave Output
• Automatic Voltage Regulation (AVR)
• Overload Protection
• Surge and Spike Protection
• EMI and RFI Filtration
• LED Status Indicator
• Configurable Alarm
• Brick Form Factor

• Topology Line-interactive

• Generator Compatibility Yes
• Nominal Input Voltage (Vac) 230 ± 10%
• Input Voltage Range (Vac) 165 ~ 280
• Input Frequency (Hz) 50 ± 5 - 60 ± 5
• Input Frequency Detection Auto-sensing
• Rated Input Current (A) 2.72
• Input Connector Type Schuko 　

• Capacity (VA) 600
• Capacity (Watts) 360
• On Battery Waveform Simulated Sine Wave
• On Battery Voltage(s) (Vac) 230 ± 10%
• On Battery Frequency (Hz) 50 ± 1% - 60 ± 1%
• Automatic Voltage Regulation (AVR) Single Boost, Single Buck
• Overload Protection Fuse
• Outlet(s) - Total 3
• Outlet Type Schuko x 3 　
• Outlet(s) - Battery & Surge Protected 3
• Typical Transfer Time (ms) 4

• Runtime at 60W (min) 30
• Runtime at 90W (min) 18
• Typical Recharge Time (Hours) 8
• Start On Battery Yes
• User Replaceable No
• Battery Type Sealed Lead-acid

• Surge Suppression (Joules) 125

• MANAGEMENT & COMMUNICATIONS
• LED Indicators Power On , Line Mode , Battery Mode , Low Battery
• Audible Alarms Battery Mode , Low Battery , Overload , UPS Fault

• Form Factor Brick
• Enclosure Construction Plastic
• Color Black

• Dimensions (WxHxD) (mm.) 158 x 91.5 x 240
• Weight (kg.) 3.8

• Operating Temperature (°C) 0 ~ 40
• Operating Relative Humidity (Non-condensing) (%) 0 ~ 90
• Operating Elevation (feet/meters) 0-10,000 feet (0-3,000 meters)
• Storage Temperature (°C) -20 ~ 50
• Storage Relative Humidity (Non-condensing) (%) 0 ~ 90
• Online Thermal Dissipation (BTU/hr) 40

• Certifications CE
• RoHS Yes

On‑Line double conversion UPS that can be used in both tower and rack configurations
The main parameters of the system and the status of the UPS, including the battery charge level and faults, are displayed on
the LCD screen.
Additional battery cabinets are available to increase the backup time of the UPS. A charger can be added in all battery cabinets for fast, safe charging.
With the reversible screen, the Daker DK UPS can be used in both tower and 19» rack configuration.
The integrated communication software not only controls the UPS and its switch-off if there is a malfunction, and enables the user to test the main functions remotely,communicate via SNMP/Internet/network adaptor and access the functions of the UPS via the Internet, but can also send the user an SMS if specific events occur.
The internal extension connector enables a WEB/SNMP card or a relay interface to be installed which provides insulated contacts for applications on industrial control panels or remote alarm panels.
If there is an electronic fault, overload, overheating or for scheduled maintenance operations, the automatic or manual (optional) bypass ensures continuity of the power supply for critical loads. A bypass switch is available for maintenance.

General features KEOR S
3kVA to 10KVA Capacity Range
1 Phase Input / 1 Phase Output
IGBT Inverter
IGBT Rectifier
High Efficiency
Digital Signal Processor (DSP)
High Input Power Factor (PFC)
High Output Power Factor
Low Input and Output Total Harmonic Distortion (THD)
Generator Compatible Operation
Standard IP31 Protection for Industrial Applications
On Site Modular Paralleling Capability up to 4 Units (except 3kVA)
Additional External Chargers for Long Back-Up Time Solutions (6-10kVA only)
Availability of Different Communication Types

Function
User friendly diagnostic
Advanced management and communication
Integrated By-pass for maintenace
LCD display with interactive menù

General characteristics
Nominal power (VA) 3000
Active power (W) 2400
Technology On-line double conversion
Waveform Sinusoidal
Architecture conventional UPS
Input characteristics
Input voltage 220V-230V-240V
Input frequency 45-65 Hz
Input voltage range 160V-288V
THD of input current 6%
Input power factor › 0,99
Output characteristics
Output voltage 220V/230V/240V Adjustable from Front Panel
Output frequency (nominal) 50 /60 Hz Adjustable from Front Panel +/- 0,05%
Crest factor 2,5:1
THD of output voltage ‹ 1,5% with linear load ‹ 3% with non-linear load
Permissible overload 10 seconds at 125%-150%; 30 seconds at 106%-120%
Efficiency in Eco mode 98%
Batteries
Backup time extension Yes
Battery type VRLA - AGM
Communication and management
LCD Display Available
Communication Port 1 RS232 serial ports, 1 USB port, modbus and SNMP optional
Remote Management Available
Physical characteristics
Dimensions H x W x D (mm) 716 x 275 x 776
Dimensions battery cabinet H x W x D (mm) 716 x 275 x 776
Ambient conditions
Operating temperature (°C) 0÷40
Relative humidity (%) 20÷80 non condensing
Protection index IP31
Noise at 1 m (dBA) ‹ 50
Compliance
Reference product standards EN 62040-1, EN 62040-2, EN 62040-3

Intelligent CPU Controlled
Wide Input Range
Fully AVR
Cold Start Avaliable
Automatic Battery Cherging in UPS Off Mode
Strong Electromagnetism Compatibility
Self-detection on Startup
Battery Replaceable Without Interruption
Full Protection Against Over Voltage / Low Voltage

Capacity: 2000VA / 1200W
Input Voltage: 220/230 / 240VAC
Frequency: 50-60Hz
Output voltage setting: +/- 10% (battery mode)
Frequency: 50-60 Hz +/- 1Hz
Battery voltage 12VDC
Recharge time: 5h to l90% fully downloaded
LED display
Operating temperature: 0˚C - 40˚C
Relative Humidity: 0-90% without condensation
Noise <40dB at 1m
Size: 370 * 150 * 170mm

On-line ‘double conversion’ technology
Real Digital Signal Processor (DSP) Controller
Power factor correction PFC (>0,99)
User friendly LCD display
Programmable Receptacles
Wide input voltage range and frequency
Availability to configure as 50/60Hz Frequency Converter
from LCD Panel
Smart communication port and SNMP management capability
Hot Swappable Battery
Emergency shutdown control through EPO
Overload & short circuit protection
Powerful Built-in Charger
Extended back up time with battery cabinet
Cold start (DC power on)
Genius battery management (GBM)
RS232, USB and SNMP can be activated simultaneously
Compact size, light weight & low noise

UPS for computers and audio and video equipment
Complete protection: discharge, overload, short-circuit, thermal
protection
Supply button / LED indicators: provides a visual and audible indication
of the UPS status
Reset push-button for the circuit-breaker: for resetting in the event that
the overload protection is activated
Automatic start-up: when there is no mains supply or it is of poor quality,
the UPS continues working using a battery and switches off if the
network breaking time exceeds the back-up time
Quick and easy battery replacement

UPS with output sockets
6 protected sockets with protection from voltage surges
2 sockets with protection from voltage surges
Input voltage: 180-270 V - 50-60 Hz
Output voltage: 230 VA ± 10% (battery mode)
Ambient operating temperature: 0 to 40°C
Relative humidity: 0 to 90%
Conform to EN 62040-1 and EN 62040-2

On‑Line double conversion UPS that can be used in both tower and rack configurations
The main parameters of the system and the status of the UPS, including the battery charge level and faults, are displayed on
the LCD screen.
Additional battery cabinets are available to increase the backup time of the UPS. A charger can be added in all battery cabinets for fast, safe charging.
With the reversible screen, the Daker DK UPS can be used in both tower and 19» rack configuration.
The integrated communication software not only controls the UPS and its switch-off if there is a malfunction, and enables the user to test the main functions remotely,communicate via SNMP/Internet/network adaptor and access the functions of the UPS via the Internet, but can also send the user an SMS if specific events occur.
The internal extension connector enables a WEB/SNMP card or a relay interface to be installed which provides insulated contacts for applications on industrial control panels or remote alarm panels.
If there is an electronic fault, overload, overheating or for scheduled maintenance operations, the automatic or manual (optional) bypass ensures continuity of the power supply for critical loads. A bypass switch is available for maintenance.

Conventional single-phase UPS systems, available in 3 versions depending on the power
Power from 1 to 3 kVA
VFI-SS-111 on-line double conversion
RS232 communication port
LAN / SNMP connectivity
Uptime can be extended with additional battery cabinets
Compact design and low footprint

General characteristics
Nominal power (VA) 1000
Active power (W) 900
Technology On-line double conversion VFI-SS-111
Waveform Sinusoidal
Architecture UPS with extendable backup time

Input characteristics
Input voltage 230 V
Input frequency 45-65 Hz ±2 % Autosensing
Input voltage range 210 V÷240 Vac at 100% load
Input power factor › 0,99

Output characteristics
Output voltage 230 V ± 1 %
Efficiency Up to 90 %
Output frequency (nominal) 50/60 Hz synchronised
Peak factor 3 : 1
THD of output voltage <3% with linear load
Permitted overload:
 - ONLINE mode  <105%
- 10 sec.  121÷150%
- 30 sec.  106÷120%
- instant transfer to bypass >151%

Bypass
Automatic, internal, synchronised, electromechanical (for overloads and operating problems)
Batteries
Backup time extension Sì
Battery voltage 24 Vdc
Backup time (min) 5

Communication and management
Screen and signalling Multi-coloured LED status indicator, alarms and audible signalling
Communication ports 1 RS232 serial port, 1 slot for network interface connection (ex. CS121)
Emergency Power Off (EPO) Yes
Remote control Software can be downloaded free of charge

Mechanical characteristics
Dimensions (H x W x D) (mm) 236 x 144 x 367
Dimensions of battery cabinet (H x W x D) (mm) 322 x 151 x 444
Battery cabinet Net weight (kg) 31

Ambient conditions
Ambient operating temperature (°C) 0÷40
Relative humidity (%) 20÷80 non condensing
Noise at 1 m (dBA) ‹ 50
Certifications: Reference product standards EN 62040-1, EN 62040-2

Microprocessor controlled Line Interactive Technology
Boost and Buck Automatic Voltage Regulation (AVR)
LCD or LED Display Panel
Advanced Battery Management (ABM)
Input Frequency auto sensing ( 50/60 Hz )
Auto restart after mains recovery
Charging during switched off mode
Short circuit and overload protection
Cold Start Function
USB Communication Interface and Remote Monitoring Software*
Modem/Phone line protection*
Compact size and user friendly operation
*Available at AP models only

Modular UPS redundant and upgradable up to 10kVA with perfomance and functions at the top of their category.
All models have a microprocessor control card that can be configured on the display, by modules powered by 1250 VA each, and by battery kits that contain no. 3x9Ah batteries
The single cabinet and 19 inch rack models issue a power from 1250 to 5000 VA, they can house a maximum of 4 power boards and 4 battery kits. Additional batteries can be stored in specific cabinets, which can be easily connected thanks to an back up time upgrading pre-setting. The range is completed with products made of two cabinets; the first cabinet can house up to 8 power modules, each up to 1250 VA, reaching a maximum power of 10kVA. In the second cabinet it is possible to insert up to 10 battery kits and an additional battery charger. Other battery cabinets identical to the one supplied can be added in order to further upgrade back up time.

Nominal power (VA) 3750
Active power (W) 2625
Max expandability (VA) 5000
Max expandability (W) 3500
Technology On-line double conversion (VFI-SS-111)
UPS architecture Modular, Expandable, N+X Redundant with 1250 VA power boards in a single cabinet

Input
Input nominal voltage 230 V
Input voltage range 184 V ÷ 264 V at 100% of the load
Minimum network operating voltage 100 V at 50% of the load
THD Input current ‹ 3%
Input Power Factor › 0.99 from 20% of the load
Input frequency 50 Hz / 60 Hz ± 2% autosensing

Output
Output voltage 230 V ± 1%
Output frequency 50 Hz / 60 Hz synchronised
THD Output voltage ‹ 1% with non-linear load
Waveform Sinusoidal
Crest Factor 3,5 : 1
Performance when connected to the mains 92% at 100% of the load
Allowed overload 300% for 1 sec. – 200% for 5 sec. – 150% for 30 sec.

Back up time
Back up time (min) 13
Back up time expandability Yes

Equipment
Bypass: Static and Electromechanical, automatic and internally synchronised (due to overload or operating fault).
Signals and Alarms: Large 4-line alphanumeric display, multi-colour status indicator, audio signal
Communication Ports: no.1 RS 232 port, no.2 logical gates
UPS Communicator Software: Can be downloaded free of charge (after requesting the activation code)
Protections:
- Electronic protections against overloads, short-circuits and excessive battery discharge.
- Operation stops when the back up time ends. In-rush current limiter at start-up.
- Sensor to connect the neutral cable correctly.
- Back-feed protection (electrical safety insulation of the input plug during battery-based operation). EPO contact
(complete shutdown in the event of an emergency)
IN/OUT mains connection: Standard German / Clamp connector with universal multiple socket outlet (Italian/German standard)

Mechanical features
Net weight (kg) 43
Dimensions (H x W x D) (mm) 475 x 270 x 570
Installed power boards 3
Free power expansion slots 1
Installed battery kits 3
Free back up time expansion slots 1

Environmental conditions
Operating temperature (°C) 0÷40
Degree of protection IP21
Relative humidity (%) 20÷80 non-condensing
Noise level at 1 m (dBA) ‹ 40
Certifications Standards EN 62040-1, EN 62040-2, EN 62040-3

General features TRIMOD HE
Three-phase modular UPS systems
Power from 10 to 80 kW NEW
VFI-SS-111 on-line double conversion
High efficiency up to 96%
Power factor 1
Adaptable, expandable and redundant solutions (configuration phase In/Out, 3-1)
Easy and quick maintenance
Low environmental impact
Diagnostic, monitoring, historical data, parameter setting by display
Low size and foot print
New cabinet sizes to increase backup time, to improve scalability and to optimize the system

Functions
Multi control board function NEW
Dual input function NEW
Plug & Play technology NEW
Menu available in 7 languages
Frequency converter fin 40-70Hz fout 50/60Hz (can be selected by the user)
Operates with a power-supply unit
Three independent output phases
Eco Mode
EPS Mode
Adjustable output voltage with 1V intervals (190÷245V)
Bypass activation speed control
Events log with date and time
Overall historical data and for each individual power module
Automatic recognition of the power modules

Nominal power (kVA) 15
Active power (kW) 15
Module power (kW) 5
Classification On-Line double conversion VFI-SS-111
System Modular, expandable and redundant UPS system

Input specifications
Input voltage 380, 400, 415 3PH+N+PE (or 220, 230, 240 1PH)
Input frequency 45-65 Hz (43,0 ÷ 68.4 Hz)
Input voltage range 400V +15%/-20% - 230V +15%/-20%
THD input current < 3% ( at full load)
Compatibility with power supply units Si
Input power factor > 0,99

Output Specifications
Output voltage 380, 400, 415 3F+N+PE (o 220, 230, 240 1F)
Efficiency Up to 96%
Efficiency in Eco mode 99%
Nominal output frequency 50/60 Hz selectable by the user ±2 % (standard), ±14 % (extended)
Crest factor 3:1
Waveform Sinusoidal
Output voltage tolerance ±1%
THD output voltage <1%
Overload capacity 10 minutes at 115%, 60 seconds at 135%
Bypass Automatic bypass (static and electromechanical) and manual maintenance bypass

Batteries
Battery module Plug & play
Battery series type/voltage VRLA - AGM / 240 Vdc
Operating time Configurable
Battery charger Smart charge technology. 3-stage advanced cycle

Communication and management
Display and signals 4 x 20-character lines, 4 menu navigation buttons,
LED multi-colour status indicator, alarms and audio signals
Communication ports 2 RS232 serial ports, 1 logical gate, 5 ports with dry contacts, 1 slot for interfaces
Backfeed protection NC/NO auxiliary contact
Emergency Power Off (EPO) Yes
Remote management Available

Physical Specifications
Height (A-B) 1650 - 1370
Width 414
Depth 628
Installed power modules 3
Installable battery drawers (A-B) Up to 16 - Up to 12
Net weight kg (A-B) 155 - 120

Ambient Conditions
Operating temperature/humidity 0 - 40°C / 0 - 95% non condensing
Protection rating IP21
Maximum audible noise at 1 m from the unit (dBA) 58-62
Conformity
Reference product standards EN 62040-1, EN 62040-2, EN 62040-3

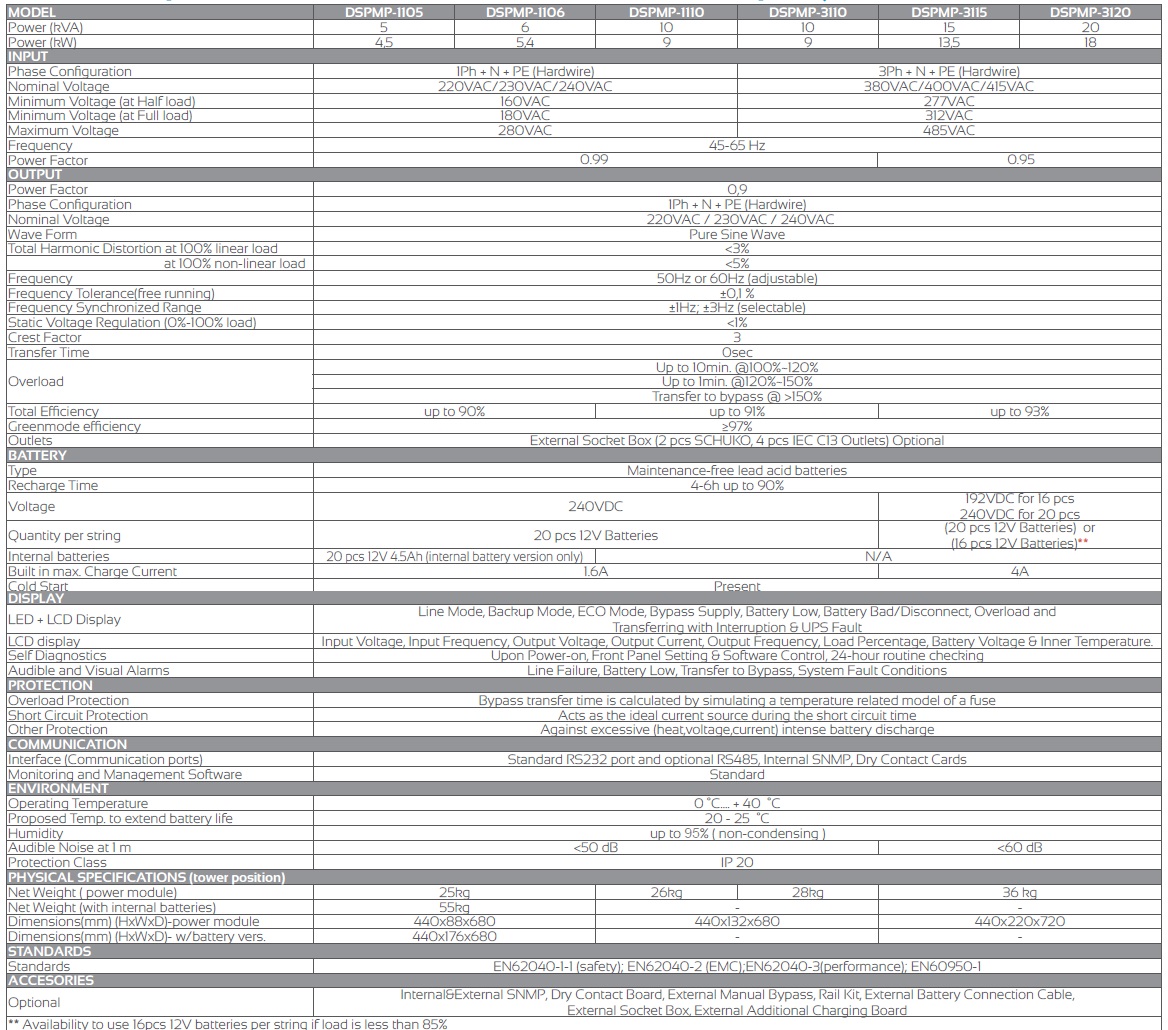

Online Double Conversion Technology

DSP Digital Control Technology
Output Power Factor 0.9
Input PFC
Selectable Charging Current For 6 & 10 kVA (1-3-5-8 Amp)
Green Environment-Friendly Model
Wide Input Voltage Range
Perfect Protection
Cold Start and Mains Power Start Function
Generator Compatibility
Zero Switching
Intelligent Battery Management
Friendly Interface

Capacity 6kVA / 5.4kW
Input Voltage: 208/220/230 / 240VAC
Voltage range: half load (115-295VAC) +/- 5VAC; Full load (165-295) +/- 5VAC
Frequency: 40-70Hz +/- 5%
Power factor> 0.99
The bypass voltage range: 160V nominal output power + 32V

Output voltage: 208/220/230 / 240VAC settable by LCD
Voltage regulation +/- 1%
Wave: pure sinus
Crest factor 3: 1
Voltage DC battery: 192V
Batteries: 16 * 7Ah
Humidity: 20-90% at 0˚C - 40˚C
Noise: <55dB
Dimensions: 262 * 514 * 735mm
Weight: 67Kg

General features
Single-phase UPS
VI line-interactive
Boost and Buck AVR converter
Control via microprocessor
The battery is easy to replace
USB and RS232 communication port
LAN / SNMP connectivity

Functions
Adjustable output voltage
Built-in self-test function
Advanced management of battery discharge
Protection from voltage peaks and noise filter
Protection from overload and short-circuits
Cold-start function
Internet Modem / LAN protection
Wiring fault indicator

Nominal power (VA) 1000
Active power (W) 600
Technology Line interactive VI
Waveform Pseudo-sinusoidal
Input characteristics
Input voltage 230 V
Input frequency 50-60 Hz +/-5Hz
Input voltage range 160 V - 290 V
Output characteristics
Output voltage 230 V ± 10 %
Output frequency (nominal) 50/60 Hz ±1 %
THD of output voltage < 3% with linear load
Batteries
Number of batteries 1
Battery range type/voltage 2x 12V - 7Ah
Communication and management:
Screen and signalling: One button and 4; LEDs for real-time control
Telephone protection RJ 11/RJ 45
Remote control Available
Mechanical characteristics
Dimensions H x W x D (mm) 239 x 147 x 354
Net weight (kg) 13
Ambient operating temperature (°C) 0 to 40°C
Relative humidity (%) 0 to 95%
Noise at 1 m (dBA) < 40
Certifications Reference product standards EN 62040-1, EN 62040-2, EN 62040-3
