These small to medium power true sinewave inverters, are ideal to power your TV/Audio equipment, small tools, battery chargers, thermal printers etc. Great overall performance, conservative output power specifications and robust build quality, ensure trouble free operation for many years. These inverters can be offered with three different AC output socket types.
The robust electronic and mechanical design makes the Powersine range of professional DC to AC sinewave inverters suitable for a wide range of applications. The very clean and interference free output of a Powersine inverter, ensures correct operation of sensitive equipment connected to the inverter output.
The Powersine inverters are protected against high/low battery voltage, high temperature, overload and short circuit. Moreover, the inverters are very efficient and have a variable speed fan which makes silent operation possible. The reliability of the products is translated to a standard warranty term of 24 months.
The Powersine inverter lineup offers a wide range of models, each with different input voltage ranges and various output power levels. Moreover, the newest available technology results in extremely efficient operation with very low ‘noload’ consumption, saving valuable energy consumed from the battery. The Automatic Standby Function (ASB), standard in all Powersine inverters, will even reduce the noload consumption by an extra 70%!

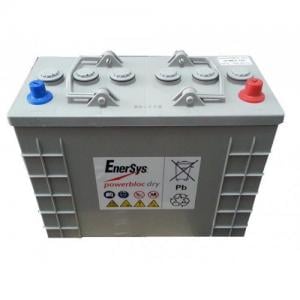

Powerbloc, powerbloc dry and Hawker XFC are ranges of bloc batteries for all applications in small traction, from cleaning machines to pallet trucks, industrial electric vehicles etc. as well as some domestic applications like wheelchairs, golf carts, etc. Powerbloc are flooded batteries when powerbloc dry and Hawker XFC are gas recombination batteries. These ranges can be recharged with 50 Hz (except Hawker XFC) or HF chargers.

Operation - To achieve optimal operating life avoid deep discharges. Never leave the battery in a discharged state. Electrolyte level for flooded batteries has to be checked regularly and then filled with demineralized water (DIN43530-4) filled up to max. level mark. The single point automatic watering system can be considered on some types. Valve regulated batteries with absorbed electrolyte (AGM) or gel electrolyte are sealed for life and need no watering

Installation - Battery monoblocs should be installed in accordance with the instructions from vehicles/trucks manufacturers (observe connection polarity, and mechanically robust installation). While operating on battery connections avoid short circuits.

Storage - If batteries have to be stored out of service for a long time, they must be kept fully charged in a dry, clean and frost free zone. A monthly refreshing charge avoids any harmful deep discharge and damage to the battery. (except for Hawker® XFCTM range which should be refresh charged every 12 months)

Maintenance - Keep batteries clean and dry to avoid current leakage. Clean the monoblocs with a damp cotton rag. Never use any organic solution. Operation and maintenance instructions for each product range should always be observed.

Cell construction
The MFP consists of grid plates in special alloy with gel electrolyte.
Benefits
• Totally maintenance free due to electrolyte immobilized in a gel.
• Very high aptitude for high current, reduced self-discharge and resilient to temperature variations.
• For applications in medium cycling duty.

Capacity
- 134 Ah (C 20)
- 105 Ah (C 5)
Number of cycles: 500-700
Dimensions (mm): 349 x 174 x 283
Weight (kg): 39

General features
Single-phase UPS
VI line-interactive
Boost and Buck AVR converter
Control via microprocessor
The battery is easy to replace
USB and RS232 communication port
LAN / SNMP connectivity

Functions
Adjustable output voltage
Built-in self-test function
Advanced management of battery discharge
Protection from voltage peaks and noise filter
Protection from overload and short-circuits
Cold-start function
Internet Modem / LAN protection
Wiring fault indicator

Nominal power (VA) 800
Active power (W) 400
Technology Line interactive VI
Waveform Pseudo-sinusoidal
Input characteristics
Input voltage 230 V
Input frequency 50-60 Hz +/-5Hz
Input voltage range 160 V - 290 V
Output characteristics
Output voltage 230 V ± 10 %
Output frequency (nominal) 50/60 Hz ±1 %
THD of output voltage < 3% with linear load
Batteries
Number of batteries 1
Battery range type/voltage 12V - 9Ah
Communication and management:
Screen and signalling: One button and 2; LEDs for real-time control
Telephone protection RJ 11/RJ 45
Remote control Available
Mechanical characteristics
Dimensions H x W x D (mm) 171 x 95 x 349
Net weight (kg) 7 .5
Ambient operating temperature (°C) 0 to 40°C
Relative humidity (%) 0 to 95%
Noise at 1 m (dBA) < 40
Certifications Reference product standards EN 62040-1, EN 62040-2, EN 62040-3

MKS plus is similar to MKS series but with bigger MPPT solar charge controller. Besides, it’s worry-free to start up motor-type loads such as refrigerators, motors, pumps, compressors and laser printers as well as electronic loads like TVs, Computers, power tool and battery chargers.

Main Features

• Pure sine wave inverter
• Built-in MPPT solar charge controller
• Selectable input voltage range for home appliances and personal computers
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• Optional remote panel available

Pure Sinewave Output for any critical load
User Friendly LCD Display
Boost and buck Automatic Voltage Regulation
97% High Effciency in Normal Mode
Communication Port and Remote Monitoring Software
Overload and Short Circuit Protection
Advanced Battery Management
Discharge Protection
Fault Alarms and State Warnings
Cold Start Function
Compact size, light weight and low noise

The Legrand UPS MegaLine 6250/2 model is a UPS using high frequency PWM technology, On Line Double Conversion type, solid neutral, modular architecture, with the possibility of N+X redundant configuration, Rated Power 6,250 VA – 4,375 W, equipped with valve-regulated hermetic-type accumulator batteries, contained inside the UPS in a specific compartment or in one or more external cabinets, sized to guarantee a minimum autonomy of 11 minutes when 80% charged.

Nominal power (VA) 6250
Active power (W) 4375
Max expandability (VA) 10000
Max expandability (W) 7000
Technology On-line double conversion (VFI-SS-111)
UPS architecture Modular, Expandable, N+X Redundant with 1250 VA power boards in a single cabinet

Input
Input nominal voltage 230 V
Input voltage range 184 V ÷ 264 V at 100% of the load
Minimum network operating voltage 100 V at 50% of the load
THD Input current ‹ 3%
Input Power Factor › 0.99 from 20% of the load
Input frequency 50 Hz / 60 Hz ± 2% autosensing

Output
Output voltage 230 V ± 1%
Output frequency 50 Hz / 60 Hz synchronised
THD Output voltage ‹ 1% with non-linear load
Waveform Sinusoidal
Crest Factor 3,5 : 1
Performance when connected to the mains 92% at 100% of the load
Allowed overload 300% for 1 sec. – 200% for 5 sec. – 150% for 30 sec.

Back up time
Back up time (min) 13
Back up time expandability Yes

Equipment
Bypass: Static and Electromechanical, automatic and internally synchronised (due to overload or operating fault).
Signals and Alarms: Large 4-line alphanumeric display, multi-colour status indicator, audio signal
Communication Ports: no.1 RS 232 port, no.2 logical gates
UPS Communicator Software: Can be downloaded free of charge (after requesting the activation code)
Protections:
- Electronic protections against overloads, short-circuits and excessive battery discharge.
- Operation stops when the back up time ends. In-rush current limiter at start-up.
- Sensor to connect the neutral cable correctly.
- Back-feed protection (electrical safety insulation of the input plug during battery-based operation). EPO contact
(complete shutdown in the event of an emergency)
IN/OUT mains connection: Standard German / Clamp connector with universal multiple socket outlet (Italian/German standard)

Mechanical features
Net weight (kg) 26.5+57.5
Dimensions (H x W x D) (mm) 2x475 x 270 x 570
Installed power boards 5
Free power expansion slots 3
Installed battery kits 5
Free back up time expansion slots 5

Environmental conditions
Operating temperature (°C) 0÷40
Degree of protection IP21
Relative humidity (%) 20÷80 non-condensing
Noise level at 1 m (dBA) ‹ 40
Certifications Standards EN 62040-1, EN 62040-2, EN 62040-3

Product description:
JYPU series inverter/charger is combination of an pure sine inverter, battery charger , Auto transfer switch into one complete system. When household AC power is disconnected, the inverter/charger convert DC battery power into AC electricity. When AC power is avaliable, it recharges the battery.JYPU inverter/charger are available in different sizes and power ranges to run various of applications.

Application For:
1. Industrial equipment: solar energy system, solar street light system, etc.
2. Travel set equipment: vehicles, ambulances, RV, boats,traffic lights, etc.
3. Office equipment: computers, printers, scanners, digital cameras, etc.
4. Household electrical equipment: electric fans, vacuum cleaners, air conditioning, lighting,microwave, refrigerators etc.
5. Power tools: Pumps,Saws, drills, punching machines, air compressors, etc.

Product features:
·Pure sine wave output (THD＜3%)
·Built-in 3-stages battery charger,allow to run loads while charging.
·Automatically Switch with a Ultra-fast switching time.
·Soft-start technology.
·High efficiency-converts the battery’s available power
·100% sufficient power.
·Aluminum shell with good heat dissipation and strong shock resistance.
·Optional Crocodile clip and cigar lighters , easy to connect batteries or vehicles’ batteries.
·USB charging port: 5V , ideally qualified for powering your phone,laptop,etc.
·LED indicators for power and protections.
·Switch-mode design, easy to use.
·Intelligent fan for cooling,long use life
·OEM and ODM are available, the color of shell can be customized.
·Optional remote control and LED display for 500W - 3000W inverter/charger.

Protection Functions:
3-Stages charging protection
Over load protection
Over temperature protection
Over voltage protection
Low voltage protection
Short circuit protection
Revers polarity protection

Rated power    2000W
Peak power    4000W
Input voltage        DC24V
Output voltage    100VAC or 110VAC or 120VAC±5%
Unload current less than    0.7A
Output frequency    50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform    Pure Sine Wave
Waveform distortion    THD＜3%(Linear load)
USB port    5V 1A
Max.efficiency    90%
Input current    15A
Input voltage range    20-31V
Low voltage alarm        21±0.5V
Low voltage protection        20±0.5V
Over voltage protection    31±0.5V
Low voltage recover    24±0.5V
Over voltage recover    29.5V±0.5V
Protection function
Low voltage    Alarm at first, voltage continously reduce. LED Red light on & shut sown.
Over voltage    LED Red light on, shut down
Over load    LED Red light on, shut down
Over temperature    Alarm at first, tempurature continously rise.LED Red light on & shut sown
Short circuit    LED Red light on
Input reverse polarity    Fuse burn-out
Output Current        10A
Bulk charge    10A
Absorption    28.8VDC
Float Charging Voltage  27.6VDC
AC Input voltage range     90-135VAC
Working temperature    -10°- +50°
Storage temperature    -30°- +70°
Dimension(mm)    396x180x128mm
Packing(mm)    400x245x200mm
Net./gross weight(g)    5552/6857g
QTY/Ctn    4 Pcs
Meas./Ctn(mm)    500x400x415mm
Gross weight/Ctn(g)    27410g
Warranty    1 years
Configuration    Standard
Cooling method    Intelligent air cooling

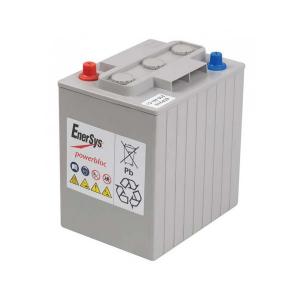

Powerbloc, powerbloc dry and Hawker XFC are ranges of bloc batteries for all applications in small traction, from cleaning machines to pallet trucks, industrial electric vehicles etc. as well as some domestic applications like wheelchairs, golf carts, etc. Powerbloc are flooded batteries when powerbloc dry and Hawker XFC are gas recombination batteries. These ranges can be recharged with 50 Hz (except Hawker XFC) or HF chargers.

Operation - To achieve optimal operating life avoid deep discharges. Never leave the battery in a discharged state. Electrolyte level for flooded batteries has to be checked regularly and then filled with demineralized water (DIN43530-4) filled up to max. level mark. The single point automatic watering system can be considered on some types. Valve regulated batteries with absorbed electrolyte (AGM) or gel electrolyte are sealed for life and need no watering

Installation - Battery monoblocs should be installed in accordance with the instructions from vehicles/trucks manufacturers (observe connection polarity, and mechanically robust installation). While operating on battery connections avoid short circuits.

Storage - If batteries have to be stored out of service for a long time, they must be kept fully charged in a dry, clean and frost free zone. A monthly refreshing charge avoids any harmful deep discharge and damage to the battery. (except for Hawker® XFCTM range which should be refresh charged every 12 months)

Maintenance - Keep batteries clean and dry to avoid current leakage. Clean the monoblocs with a damp cotton rag. Never use any organic solution. Operation and maintenance instructions for each product range should always be observed.

Cell construction
The powerbloc FPT range has advanced flat grid plates and paste formulation giving extended service life. It is especially suited to arduous deep cycle semi-traction applications.
Benefits
• Advanced separator design and paste formulation gives true 700 cycle performance.
• Enhanced performance gives extended running times and lower maintenance.
• Superior performance means more productive run-time.

Capacity
- 269 Ah (C 20)
- 210 Ah (C 5)
Number of cycles: 700
Dimensions (mm): 260 x 181 x 302
Weight (kg): 31.8

The PowerSafe TS range of single cells offers high performance, long life solutions for renewable energy applications.

PowerSafe TS cells are based on proven vented technology and designed for renewable energy applications that require maximum cycle life with the highest level of reliability. They are particularly suitable for use in solar energy installations, ensuring a continuity of electrical supply during the hours of darkness or during periods of reduced sunshine.

Reduced maintenance is achieved through the use of additional electrolyte which means cells only have to be topped-up once a year. This helps to keep down maintenance costs and makes them an ideal solution for many remote or unmanned locations.

Tubular positive plates are widely used in batteries for particularly demanding applications. In the PowerSafe TS range they have been optimised to give an extended cycle life and increased capacity.

Products available both filled & charged and moist charged
Up to 5200 cycles to 25% depth of discharge
Topping up required once a year only
Minimal maintenance required
Excellent operational safety including: fully insulated connectors and terminals, acid proof flame arrestor plug for each cell, protection of polarities during transport

Voltage rating: 2V
Nr. Of terminals: 2
Capacity:
- (C 120): 745 Ah;
- (C 10): 550 Ah;
Dimensions L x L x H: 166 x 206 x 505 mm;
Weight: 32.1 Kg;
Topology: acid

Photovoltaic Solar Panels for Charging and Maintenance of 12V Batteries
They are made in the superstrate configuration using tempered glass, which is specially designed for solar applications. Using the latest silicon deposition technology, we can manufacture different sizes, for different powers and voltages. Serial connections are made with laser process, so no mechanical connections are required.

Our panels absorb a wide range of wavelengths, so they generate energy from the first sunlight in the morning until the latest sunlight in the afternoon, even on cloudy days. These panels are designed to charge and maintain 12V batteries like those used in cars, boats, caravans, motorcycles, snowmobiles, etc. or small 12V systems as electrification doors, security systems, etc.
Through the energy generated by the panels, the batteries are prevented from the typical self-discharge and are maintained themselves at the optimum charge for when we need to use them. Its capabilities and performance features make them the ideal choice in many occasions.

Our amorphous solar panels operate very well in all weather conditions, even on cloudy days or under unavoidable shadows situations. This is especially very useful in not sunny locations or especially rainy climates.

These panels are maintenance-free and they are very easy to install. Armed with bypass diodes protection, are made of very strong materials and shockproof shatterproof glass.

• Easy: Very easy to use and install, with all kind of connectors included, such as, battery cable clamp, male and female CLA socket and extra cable. Lightweight. Maintenance-free.
• Reliable: They charge batteries in all weather conditions. They are weatherproof and shock resistant. Shatterproof tempered glass.
• Electrical Connection: Corrosion resistan junction box for more protection. Our modules are delivered with pre-assembled solar cables to enable quick and secure wiring without the need of special tools.
• The 20W model: It requires a solar charge controller.

Technical data:
Pmax: 2.5W
V: 12V
Vmp: 15V
Imp: 167 mA
Voc: 21.5V
Temperature range: -40°C / + 80°C
Connector: XUI
Dimensions (mm): 325x125x22
Cable length (mm): 1800

Stand-alone photovoltaic systems can be installed wherever supply of electricity from a power grid is unavailable, uneconomic or not desirable. In situations such as these, Luxor offers specially developed, high-quality, efficient off-grid modules, which are also ideal for 12 V. The Solo Line modules are suitable for all kinds of power generation in the leisure sector or for professional applications such as holiday, garden or residential homes, mobile systems in caravans or boats, solar pumps for drinking water supply and irrigation, and in traffic systems such as parking ticket machines, traffic control systems or even street lamps, measurement systems or telecommunication systems.
The compact and sturdy stand-alone PV module is the practical solution and ideal for applications with no connection to the power grid. Selecting Luxor off-grid modules provides solutions even for the most demanding requirements.

Electric data LX - 100M
Article description LX-100M / 125-36
Nominal power Pmpp [Wp] 100
Power tolerance 0/5%
Rated current IMPP [A] 5.39
Nominal voltage Vmpp [V] 18.70
Short circuit current Isc [A] 5.87
Open circuit voltage [V] 21.60
Max. System voltage [V] 1000

Temperature coefficient [% / ° C] LX - 100M
Coefficient of temperature [P] - 0.49%
Temperature coefficient [I] 0.05%
Temperature coefficient [V] - 0.35%

LX - 100M Specifications
Cell size 125 x 125 mm
Number of cells | Cell type 4 x 9 | mono
Weight 7.8 kg
Cable length 850 mm
Cable diameter 4 mm2
Diode 2 x 12 A
Socket IP 65

Off grid systems with battery power storage.

The system consists of:
- 27 x 260W BenQ polycrystalline panel
- 1 x Invertor MKS Plus Tri 5k-48, MPPT 60A
- 1 x LifePpo 100A 48V 4.8kW battery
- Tilt roof system
- 60 x 6mm solar cable
- Small items (sockets, fuses, etc.)

The PSC1600-12-60 and PSC1800-24-35 are very compact all in one combinations of a true sinewave inverter, a powerful battery charger and an automatic transfer switch. An ideal power station solution for Caravan, RV, Marine or off-grid solar applications.
The Powersine inverter-charger recharges the house batteries when AC power (from grid or generator) is available at the input. The device also allows any surplus AC power to pass through and power downstream AC loads, such as a television or microwave oven. When there is no AC power available, the unit inverts DC battery power into clean AC electricity. All this is done automatically and the AC transfer switch operates extremely fast, not disturbing any AC loads connected to the output.
The device has an automatic standby function which reduces the already small no-load power consumption by an extra 70%. Furthermore, the Powersine Combi is equipped with a TBSLink port to connect to a TBS Remote Control or to a Windows device for easy step by step configuration and readout through the TBS Dashboard software.
The Powersine Combi offers many innovative features like AC Input Power Boost, which temporarily assists weak AC input sources when more power is needed than available. This for example, allows the use of a smaller generator which reduces the overall system costs. Another feature is AC Input Current Limit, which limits the maximum current consumed from the AC input source by the Powersine Combi in charger mode.
The Powersine combi devices are well known thanks to their high efficiency and robust design. Moreover, these inverter-chargers are equipped a powerful 4-stage battery charger. Just like the regular inverters, the inverter-chargers of TBS Electronics are all protected against high or low battery voltage, high temperature, overload and short circuit.

EnerSys outstanding EON Technology further extends the technical leadership of PowerSafe SBS batteries: not only do PowerSafe SBS EON Technology cells and monoblocs retain the benefits typically associated with EnerSys' Thin Plate Pure Lead Technology (long life, high energy density, superior shelf life, etc.), they also deliver exceptional cyclic performance in both float and fast charge applications, even in the hottest and harshest operating environments.
Where conventional VRLA AGM batteries struggle to cope with harsh conditions and frequent power outages, EON Technology makes PowerSafe SBS 2V and 12V batteries the perfect solution for the challenging operating conditions of today's telecommunication networks. The specification of PowerSafe SBS EON Technology also makes SBS EON products suitable for large-scale UPS and off-grid energy storage applications.
Construction
• Positive plates - pure lead grids manufactured using a unique process
• Negative plates - provide perfect balance with the positive plates to ensure optimum recombination efficiency
• Separators - superior quality microporous glass mat separators with high absorption and stability
• Containers and lids - UL94 V-0 rated flame retardant ABS material, highly resistant to shock and vibration
• Electrolyte - high grade dilute sulphuric acid absorbed into separator material
• Terminal design - proven, high integrity leak resistant terminal seal design
• Self-regulating pressure relief valves - prevent ingress of atmospheric oxygen
• Flame arrestors - built into each bloc/cell for increased operational safety

MKS is equipped with MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank. Transformerless design provides reliable power conversion in compact size. Besides, it’s worry-free to start up motor-type loads such as refrigerators, motors, pumps, compressors and laser printers as well as electronic loads like TVs, Computers, power tool and battery chargers.

Main Features

• Pure sine wave inverter
• Output power factor 1 (only 0.8 for 3KP/5KP Models)
• Built-in battery equalization function to extend battery life cycle
• Built-in MPPT solar charge controller
• Selectable input voltage range for home appliances and personal computers
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Battery equalization for optimized battery performance and lifecycle

Main Features for MSD/MST Series
● Multiple MPPT input up to 3X
● MC4 PV connectors
● Enhanced PCB coating and resistance against harsh environment
● Solar charging up to 180A!
● High frequency pure sine wave design
● Suitable for Off-Grid or with Grid
● Programmable parameters
● Parallel operation (48V only)
● Max 60A utility charging
● Adjustable charging volt
● Wide AC input range
● Lightweight, easy to install
● 2X surge capacity max 5s
● FREE monitoring software
● LCD Display + LED indicators
● Genset starter dry contact (inverter-type generator recommended)
● USB communication interface
*AC/DC & MC4 cable gland features currently available only on 1200w & 2400w models.

Electrical Specifications
Continuous Output 1200W
Surge Rating 2X
Input Power Factor 0.8
Input Voltage Range 90~280VAC (Appliance mode), 170~280VAC (UPS mode)
Input/Output Frequency 50Hz / 60Hz
Output Voltage 230VAC±5%
Output Waveform Pure Sine Wave
Output Short Circuit Circuit Breaker
Peak Efficiency >93%
Nominal DC Voltage 12V
Max DC Input 16V
Transfer Time <10ms (UPS mode), <20ms (Appliance mode)
Charging Mode 3-stage
Max AC Charging Current 60 amp

Solar Charger
MPPT Port 2
Max Charging Current 80A
Max PV Input Voc 100V
MPPT Range 15 ~ 80V

ENVIRONMENTAL / MECHANICAL SPECIFICATIONS
Certification CE
Operating/Storage Temp. 0°C ~ 55°C / -15°C~ 60°C
Operating Humidity 20~90%RH Non-Condensing
Dimension 400*272*124mm
Net Weight 8Kg

• Do-it-yourself Solar Ligthing & Power KIT
• Light everywhere you imagine. Do not requires the mains
• Versatile & Adaptable. Fits with your favourite luminary
• Both Indoor & Outdoor use
• Easy on, easy off. Plug & Play
• Easily expandable
• Ultra-Secure (Low Voltage 12V) & Efficient (LEDs)
• Clean, Free and Renewable Energy for lighting and/or running 12VDC appliances
• Weatherproof, Resistant, Maintenance-free and very Long-Lasting components
• Ideal for Off-Grid, Off-Shore and Backup power applications, e.g., cabins, homes, gardens, boats, RVs, Backup, remote power use,…
• Complete. High-Quality Components. SOLARLIFE™ i includes:
  • Solar Photovoltaic (PV) Panel: matches perfectly with all 12VDC components of the system achieving the Best Results and Performance Possible
  • Solar Charge and Discharge Controller: Controls and protects the battery completely
  • Deep-Cycle Solar Battery: Maintenance-Free. Long Service Life
  • 3W-12VDC-240lm LEDs: Remove dependency on inverter for lighting. Connect the LEDs to the solar charge and discharge controller directly
  • Universal Battery Box: Protects and storages easily all the components. Smart Design, Innovative Packaging & Storage. It is a practical charging station
  • Solar Cables & Lamp Holders: Ready-to-Use. No Special Tools Needed. As all components fit together, they are easy to install and ready to use
• Always Light, Impressive Efficiency e.g., SOLARLIFE™ i-30 delivers more than 17 hours of light per day in ideal conditions (4 hours STC, Standard Test Conditions, STC: 1000W/m2, 25ºC and AM 1,5)

The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.



Features

Two AC Outputs



The main output has no break functionality. The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus. Loads that should not discharge the battery, like a water heater for example can be connected to this output



Virtually unlimited power thanks to parallel operation

Up to 6 Multis can operate in parallel to achieve higher power output. Six 24/5000/120 units, for example, will provide 25 kW / 30 kVA output power with 720 Amps charging capacity.



PowerControl - Dealing with limited generator, shore side or grid power

The MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (nearly 10 A per 5 kVA Multi at 230 VAC). With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.



PowerAssist - Boosting the capacity of shore or generator power

This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.



Solar energy: AC power available even during a grid failure

The MultiPlus can be used in off grid as well as grid connected PV and other alternative energy systems. Loss of mains detection software is available.



System configuring

- In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure.

- Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software.

- Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).



On-site Monitoring and control

Several options are available: Battery Monitor, Multi Control Panel, Ve.Net Blue Power Panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232)



Remote Monitoring and control

Victron Ethernet Remote, Victron Global Remote and the Color Control Panel. Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.



Remote configuring

When connected to the Ethernet, systems with a Color Control panel can be accessed remotely and settings can be changed.

Full Specifications

• Part Number : PMP121800000
• Manufacturer : Victron Energy
• Output Wave Form : Pure Sine Wave
• Voltage (V) : 12
• Watts : 700
• Charge Current House Battery (Amps) : 35
• Input Voltage : 230V
• Charge Starter Battery (Amps) : 1
• Length (Mm) : 110
• Width (Mm) : 214
• Height Inc Terminals (Mm) : 375
• Remote Control : Optional
• UPS : Yes
• Manufactured Weight (Kg) : 10
• Frequency (Hz) : 50

The 5kW Victron Quattro is a powerful true sine wave inverter, a sophisticated battery charger and a high-speed AC transfer switch in a single compact enclosure. The bigger brother of the Multiplus range, this unit is designed for industrial and commercial systems with multiple AC sources and differential loading, in addition to larger 3-phase systems.

The Quattro can take an inputs from a generator and grid supply. It can be used in conjunction with a battery bank and solar PV inverter as an energy storage system. The unit has two AC outputs, one being programmable to only operate when shore/grid power is available; designed for heavy loads such as washing machines etc.

Up to 10 Quattro units can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible.



Features

Two AC inputs with integrated transfer switch

The Quattro can be connected to two independent AC sources, for example the public grid and a generator, or two generators. The Quattro will automatically connect to the active source.



Two AC Outputs

The main output has no-break functionality. The Quattro takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, like a water heater for example, can be connected to this output.



Virtually unlimited power thanks to parallel operation

Up to 6 Quattro units can operate in parallel. Six units 48/10000/140, for example, will provide 54kW / 60kVA output power and 840 Amps charging capacity.



Three phase capability

Three units can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected to provide 162kW / 180kVA inverter power and more than 2500A charging capacity.



PowerControl – Dealing with limited generator, shore side or grid power

The Quattro is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (16A per 5kVA Quattro at 230VAC). A current limit can be set on each AC input. The Quattro will then take account of other AC loads and use whatever is spare for charging, thus preventing the generator or mains supply from being overloaded.



PowerAssist – Boosting shore or generator power

This feature takes the principle of PowerControl to a further dimension allowing the Quattro to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the Quattro will make sure that insufficient mains or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.



Solar energy: AC power available even during a grid failure

The Quattro can be used in off grid as well as grid connected PV and other alternative energy systems. Loss of mains detection software is available.



System configuring

- In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure.

- Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configuratorsoftware.

- Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).



On-site Monitoring and control

Several options are available: Battery Monitor, Multi Control Panel, Ve.Net Blue Power panel, Color Control panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).



Remote Monitoring and control

Victron Ethernet Remote, Victron Global Remote and the Color Control Panel. Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.



Remote configuring

When connected to the Ethernet, systems with a Color Control panel can be accessed and settings can be changed.

Highly Reliable - built for the years ahead

Phoenix Inverters are built to last. They feature sophisticated full-bridge and toroidal transformer topology - which is suitable for powering sensitive electronics. They are overload, temperature, and short-circuit protected.



Full bursts - High Peak output

Some electronic devices - particularly those which have an electric motor - require short burst of energy on start-up which is much higher than their rated power consumption. No problem - the Phoenix inverter has industry-leading peak-power capability.



Intelligent alarms, shut-downs, and re-starts

A high power draw on start-up can trigger false alarms, and shut-downs. Phoenix makes allowance for this and only shuts down in cases of persistent overload. Intelligently - shut downs will be followed by a series of re-starts - to eliminate 'false alarms'.



Conserve power with Eco mode

In Eco mode the inverter shuts down when no power is required. Phoenix senses the output socket every couple of seconds and automatically turns back on if power is again required.



User-configurable settings

Phoenix has a communication port providing access to status information, alarms and automatic user-configurable low-voltage shut downs. Shut downs will be followed by a series of intelligent re-start attempts. User settings can be accessed from your computer or mobile device via VictronConnect - our free-to-use app.



Features

VE.Direct communication port

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)

• Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)



Fully configurable:

• Low battery voltage alarm trip and reset levels

• Low battery voltage cut-off and restart levels

• Dynamic cut-off: load dependent cut-off level

• Output voltage 210 - 245V

• Frequency 50 Hz or 60 Hz

• ECO mode on/off and ECO mode sense level



Monitoring:

• In- and output voltage, % load and alarms



Proven reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.



High start-up power

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.



ECO mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.



Remote on/off

A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.



LED diagnosis

Please see manual for a description.



To transfer the load to another AC source: the automatic transfer switch

For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.



DC connection with screw terminals

No special tools needed for installation



Full Specifications

• Part Number : PIN482510500
• Manufacturer : Victron Energy
• Output Wave Form : Pure Sine Wave
• Voltage (V) : 48
• Frequency (Hz) : 50Hz or 60Hz
• Watts : 200
• Peak Power (W) : 400
• Continuous Output Power (VA) : 250
• Length (Mm) : 260
• Width (Mm) : 165
• Height (Mm) : 86
• Manufactured Weight (Kg) : 2.4
• Remote Control : No

Adaptive 4-stage charge characteristic: bulk – absorption – float – storage

The Phoenix Charger features a microprocessor controlled ‘adaptive’ battery management system that can be pre-set to suit different types of batteries. The ‘adaptive’ feature will automatically optimise the process relative to the way the battery is being used.

The right amount of charge: variable absorption time

When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.

Preventing damage due to excessive gassing: the BatterySafe mode

If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the Phoenix Charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached.

Less maintenance and ageing when the battery is not in use: the Storage mode

The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2 V/cell (13,2 V for 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.



Increased battery life: temperature compensation

Every Phoenix Charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries and/or when important fluctuations of battery temperature are expected.

Battery voltage sense

In order to compensate for voltage loss due to cable resistance, Phoenix Chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage.

Computer interface

Every Phoenix Charger is ready to communicate with a computer through its RS-485 data port.

The GEL model range offers best deep cycle durability and overall longer life. The use of high purity materials and lead calcium grids ensure that for both AGM and GEL products have particularly low self-discharge so that they will not go flat during long periods without charge. Both ranges are supplied with M8 drilled, flat copper terminals ensuring best possible connection contact and eliminating the need for battery terminals. The batteries are compliant with both CE and UL specifications in ABS fireproof containers and come with Victron's 2 year world-wide warranty.



Benefits

Sealed (VRLA) Gel Batteries

Here the electrolyte is immobilized as gel. Gel batteries in general have a longer service life and better cycle capacity than AGM batteries.



Low Self-Discharge

Because of the use of lead calcium grids and high purity materials, Victron VRLA batteries can be stored during long periods of time without recharge. The rate of self-discharge is less than 2% per month at 20°C. The self-discharge doubles for every increase in temperature by 10°C. Victron VRLA batteries can therefore be stored for up to a year without recharging, if kept under cool conditions.



Exceptional Deep Discharge Recovery

Victron VRLA batteries have exceptional discharge recovery, even after deep or prolonged discharge. Nevertheless repeatedly deep and prolonged discharge has a very negative effect on the service life of all lead acid batteries, Victron batteries are no exception.



Battery Discharging Characteristics

The rated capacity of Victron Gel Deep Cycle batteries refers to 20 hour discharge, in other words: a discharge current of 0,05 C. The rated capacity of Victron Tubular Plate Long Life batteries refers to 10 hours discharge. The effective capacity decreases with increasing discharge current. Please note that the capacity reduction will be even faster in case of a constant power load, such as an inverter.



Effect of temperature on service life

High temperature has a very negative effect on service life.

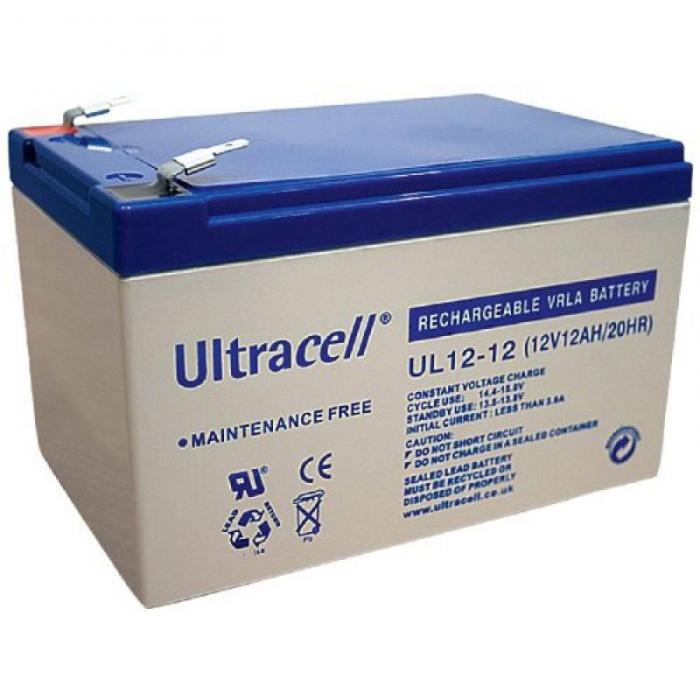

UL Series VRLA batteries use oxygen recombination technology, which provides for maintenance-free usage and can be used for:
All Purpose
Emergency Light
Backup Power Supply
Aircraft Signal
Security Systems
Length: 259 ± 2 mm
Width: 168 ± 2 mm
Container Height: 208 ± 2 mm
Total Height (with terminal): 214 ± 2 mm
Approx Weight: Approx 22.3kg

On‑Line double conversion UPS that can be used in both tower and rack configurations
The main parameters of the system and the status of the UPS, including the battery charge level and faults, are displayed on
the LCD screen.
Additional battery cabinets are available to increase the backup time of the UPS. A charger can be added in all battery cabinets for fast, safe charging.
With the reversible screen, the Daker DK UPS can be used in both tower and 19» rack configuration.
The integrated communication software not only controls the UPS and its switch-off if there is a malfunction, and enables the user to test the main functions remotely,communicate via SNMP/Internet/network adaptor and access the functions of the UPS via the Internet, but can also send the user an SMS if specific events occur.
The internal extension connector enables a WEB/SNMP card or a relay interface to be installed which provides insulated contacts for applications on industrial control panels or remote alarm panels.
If there is an electronic fault, overload, overheating or for scheduled maintenance operations, the automatic or manual (optional) bypass ensures continuity of the power supply for critical loads. A bypass switch is available for maintenance.
