Solar Panels

Display: 1-21 from 40 products

1
Polycrystalline Solar Panel Luxor Solo Line 140W LX - 140P
  • Brand: Luxor
Stand-alone photovoltaic systems can be installed wherever supply of electricity from a power grid is unavailable, uneconomic or not desirable. In situations such as these, Luxor offers specially developed, high-quality, efficient off-grid modules, which are also ideal for 12 V. The Solo Line modules are suitable for all kinds of power generation in the leisure sector or for professional applications such as holiday, garden or residential homes, mobile systems in caravans or boats, solar pumps for drinking water supply and irrigation, and in traffic systems such as parking ticket machines, traffic control systems or even street lamps, measurement systems or telecommunication systems.
The compact and sturdy stand-alone PV module is the practical solution and ideal for applications with no connection to the power grid. Selecting Luxor off-grid modules provides solutions even for the most demanding requirements.

Electrical data LX - 140P
Article description LX-140P / 156-36
Nominal power Pmpp [Wp] 140
Power tolerance 0 / + 5%
Rated current IMPP [A] 7.81
Nominal voltage Vmpp [V] 17.97
Short circuit current Isc [A] 8.24
Open circuit voltage [V] 21.60
Max. System voltage [V] 1000

Temperature coefficient [% / ° C] LX - 140P
Coefficient of temperature [P] - 0.45%
Temperature coefficient [I] 0.05%
Coefficient of temperature [V] - 0.32%

LX - 140P Specifications
Cell size 156 x 156 mm
Number of cells | Cell type 4 x 9 | poly
Weight 11.5 kg
Cable length 850 mm
Cable diameter 4 mm2
Socket IP 54
Read more
167.64 EUR VAT included
The product is in stock
Details
2
Polycrystalline Solar Panel BenQ SunPrimo PM060PW1 - 260Wp(BFR)
  • Brand: BenQ
Multi-Crystalline Photovoltaic Module

Power range 250-265 Wp

Highly Strengthened Design
Module complies with advanced loading tests to meet 5400 Pa loading requirements

Flammability Test
Low ignitability ensuring fire safety

Anti-Reflection Coated Glass
Anti-reflective surface enhances the power performance

Resistance to Salt Corrosion and Humidity
Module complies with IEC 61701: Salt Mist Corrosion Testing

Ammonia Test
Reliable in ammonia rich environment

Nominal power PN 260W
Module efficiency 16%
Rated voltage Vmp (V) 31.2
Nominal Current Imp (A) 8.34
Open circuit Voltage VOC (V) 37.7
Current short circuit ISC (A) 8.83
Coefficient of temperature TONC 46 ± 2 ° C
Temperature Coefficient PN -0.39% / K
Temperature Coefficient of VOC -0.30% / K
Coefficient of temperature of 0.07% / KS
Mechanical Features Dimensions (L x H x W) 1640 x 992 x 40 mm
Weight 19 kg
Read more
180,39 EUR 155.53 EUR VAT included
The product is in stock
-14%
Details
3
Photovoltaic Panel C-Si Off-grid SOLARPOWER 120W-12V XUNZEL with cable 4+4M SOLZTK120
  • Brand: Xunzel
Off-Grid High-Efficiency Solar Photovoltaic Panels for Battery Charging
Designed for Off-Grid & Off-Shore systems
Ready to connect and use. Secure and easy wiring
SOLARPOWER™ includes long pre-assembled solar cables ready to connect to the solar charge controller
36-cells modules, best option to charge 12V batteries (72-cells modules for 24V batteries)
Extendable. High power systems can be achieved connecting strings in parallel
Silicon Crystalline (c-Si) Solar PV modules
High-quality, very reliable and high-performance
Corrosion resistant junction box to protect electrical connections
Hardened protective glass protects the cells. Also the cells are embedded in transparent EVA (Ethylene-Vinyl-Acetate)
Flash and Electroluminescence Tested
Positive performance tolerance

Pmax: 120W
V: 12VCC
Vmp: 18.10V
Imp: 6.63A
Voc: 21.8V
Isc: 7.21A
Cells: 36
Cable length: 4000mm
Weight: 10.40kg
Dimensions (mm): 1325x670x35
Read more
234.78 EUR VAT included
The product is in stock
Details
4
Monocrystalline Solar Panel LG NeON2 LG315N1C-G4 NeON 2 315Wp
  • Brand: LG
Enhanced Performance Warranty
LG NeON™2 has an enhanced performance warranty. The annual degradation has fallen from -0.7%/yr to -0.6%/yr. Even after 25 years, the cell guarantees 2.4%p more output than the previous LG NeON™ modules.
High Power Output
Compared with previous models, the LG NeON™ 2 has been designed to significantly enhance its output efficiency, thereby making it efficient even in limited space.
Aesthetic Roof
LG NeON™ 2 has been designed with aesthetics in mind; thinner wires that appear all black at a distance. The product may help increase the value of a property with its modern design.
Outstanding Durability
With its newly reinforced frame design, LG has extended the warranty of the LG NeON™ 2 for an additional 2 years. Additionally, LG NeON™ 2 can endure a front load up to 6000 Pa, and a rear load up to 5400 Pa.
Better Performance on a Sunny Day
LG NeON™ 2 now performs better on sunny days thanks to its improved temperature coefficiency.
Double-Sided Cell Structure
The rear of the cell used in LG NeON™2 will contribute to generation, just like the front; the light beam reflected from the rear of the module is reabsorbed to generate a great amount of additional power.

Mechanical Properties
Cells    6 x 10
Cell vendor    LG
Cell type    Monocrystalline / N-type
Cell dimensions    156.75 x 156.75 mm / 6 inches
# of busbar    12 (Multi Wire Busbar)
Dimensions (L x W x H)    1640 x 1000 x 40 mm 64.57 x 39.37 x 1.57 inch
Front Load    6000 Pa / 125 psf
Rear Load    5400 Pa / 113 psf
Weight    17.0 ± 0.5 kg / 37.48 ± 1.1 lbs
Connector type    MC4, MC4 Compatible, IP67
Junction box    IP 67 with 3 bypass diodes
Length of cables    2 x 1000 mm / 2 x 39.37 in
Glass    High transmission tempered glass
Frame    Anodized aluminum
Certifications and Warranty
Certifications    IEC 61215, IEC 61730-1/-2, UL 1703, ISO 9001, IEC 62716 (Ammonia Test), IEC 61701(Salt Mist Corrosion Test)
Product warranty    12 years
Module Fire Performance (USA)    Type 2 (UL1703)
Fire Rating (for CANADA)    Class C (ULC/ORD C1703)
*1) 1st year: 98%, 2) After 2nd year: 0.6%p annual degradation, 3) 83.6% for 25 years
Output warranty of Pmax    Linear warranty*
Temperature Characteristics
NOCT    46 ± 3 °C
Pmpp    -0.38 %/°C
Voc    -0.28 %/°C
Isc    0.03 %/°C
Electrical Properties (STC*)
MPP voltage (Vmpp)    33.2
MPP current (Impp)    9.50
Open circuit voltage (Voc)    40.6
Short circuit current (Isc)    10.02
Module efficiency (%)    19.2
Operating temperature (°C)    -40 ~ +90
Maximum system voltage (V)    1000
Maximum series fuse rating (A)    20
Power tolerance (%)    0 ~ +3
*    STC (Standard Test Condition): Irradiance 1000 W/m2, Module Temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion. / The typical change in module efficiency at 200 W/m2 in relation to 1000 W/m2 is -2.0%.
Electrical Properties (NOCT*)
Maximum power(Pmax)    230
MPP voltage (Vmpp)    30.4
MPP current (Impp)    7.58
Open circuit voltage (Voc)    37.6
Short circuit current (Isc)    8.08
*    NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s
Read more
352.07 EUR VAT included
The product is in stock
Details
5
Monocrystalline solar panel 100w
  • Brand: Poweracu
Description
Solar panel 100W 12V monocrystalline
The use of this solar panel is planned to be autonomous, it is equipped with monocrystalline silicon cells, the technology offering the most yield currently on the market.

Applications
It will adapt wherever the need for electricity is essential, here are some examples of applications:
Villa, isolated residence, boating (boat, sailboat), cabanon, bungalow, caravanning, camper etc.

Main technical characteristics of SPV100M solar panel:
Max power (Pmax): 100 Wc
Tolerance: 0 to + 3% at 25°C.
Optimum voltage (Vmp): 18.4 V.
Optimum current (Imp): 5.40 A.
Vacuum voltage (Voc): 22.25 V.
Short-circuit current (Isc): 5.8 A.
3 bypass diodes, 36 cells in series of 125 x 125 mm.
Dimensions: 1000 x 670 x 35 mm.
Weight: 9 Kg.
Connection via waterproof housing, MC4 connector.

Cell type Monocrystalline silicon
Max voltage 1000V DC
Number of cells 36 pcs
Tolerance + 3%
Panel yield 13%
Voltage Mpp 18V
Intensity Mpp 5.56A
Aluminum frame
Waterproof IP67 junction box
Operating temperature -40 ° C - + 85 ° C
Test STD AM 1.5,250C, 1000W / M2
Read more
100.00 EUR VAT included
The product is in stock
Details
6
Polycrystalline Solar Panel BenQ Green Triplex PV060P00 260W
  • Brand: BenQ
GreenTriplex PM060P00 is a high-quality multi-crystalline module that can be widely used in residential, commercial and utility projects. It has passed the salt-mist corrosion test, ammonia corrosion test and flammability test to provide increased reliability and safety. The positive power tolerance of up to +3% ensures the expected power outputs.

Highly Strengthened Design
- Module complies with advanced loading tests to meet 5400 Pa loading requirements
IP-67 Rated Junction Box
- Advanced water and dust proof level
Flammability Test
- Low ignitability ensuring fire safety
Anti-Reflection Coated Glass
- Anti-reflective surface enhances the power performance
PID-Free
Resistance to Salt Corrosion and Humidity
- Module complies with IEC 61701: Salt Mist Corrosion Testing
Ammonic Test
- Reliable in ammonia rich environment

Module size: 1639 x 983 x 40 mm
Weight: 18.5 kg
Mechanical resistance: at load compression up to 5400 Pa
Connector: TE Connectivity PV4: 1 x 4 mm² (0.04 x 0.16 in²)
Solar Cells Solar Cells: 60 pcs
Efficiency: 16.1%
Power (Pmpp) 260 Wp
Nominal voltage (Vmpp): 31.2 V
Rated current (Impp): 8.36 A
Open circuit voltage (Voc): 37.7V
Short-circuit current (Isc): 8.89 A
Thermal properties
Operating temperature -40 ... +85 ° C
Temperature coefficient Pmpp -0.39% / K
Coefficient of VOC -0.33% / K
Coefficient of temperature Isc 0.07% / K
Read more
192.71 EUR VAT included
The product is in stock
Details
7
Photovoltaic Panel C-Si Off-grid SOLARPOWER 10W-12V XUNZEL with cable 2+2M SOLZTK10
  • Brand: Xunzel
Off-Grid High-Efficiency Solar Photovoltaic Panels for Battery Charging
Designed for Off-Grid & Off-Shore systems
Ready to connect and use. Secure and easy wiring
SOLARPOWER™ includes long pre-assembled solar cables ready to connect to the solar charge controller
36-cells modules, best option to charge 12V batteries (72-cells modules for 24V batteries)
Extendable. High power systems can be achieved connecting strings in parallel
Silicon Crystalline (c-Si) Solar PV modules
High-quality, very reliable and high-performance
Corrosion resistant junction box to protect electrical connections
Hardened protective glass protects the cells. Also the cells are embedded in transparent EVA (Ethylene-Vinyl-Acetate)
Flash and Electroluminescence Tested
Positive performance tolerance

Pmax: 10W
V: 12VCC
Vmp: 18.10V
Imp: 0.55A
Voc: 21.8V
Isc: 0.60A
Cells: 36
Cable length: 2000mm
Weight: 1.28kg
Dimensions (mm): 345x282x25
Read more
50.78 EUR VAT included
The product is in stock
Details
8
Flexible Solar Panel Sunpower 12V 100W with cable MC4
  • Brand: Sunpower
The panel uses highly efficient SUNPOWER cells and can provide a total efficiency of 22%. The product is waterproof, flexible and has a 1 year warranty.
Light and thin, without glass or aluminum
Weatherproof
Its size is 1060x530x3 (mm) and the thickness is only 3 millimeters.

100W output
Maximum supply voltage (Vpm) 18V
Maximum current power (Ipm) 5.55A
Open circuit voltage (Voc) 21.6V
Short circuit (Isc) 6.11A
Amount of 32pc cells
Read more
140.02 EUR VAT included
The product is in stock
Details
9
Monocrystalline Solar Panel BenQ Green Triplex PM060M02 275W
  • Brand: BenQ
GreenTriplex PM060M02, a mono-crystalline module for residential and commercial applications, can generate higher power output for one of its premium product features – “Superior Weak Light Performance.”

Under weak light conditions*, GreenTriplex PM060M02 can still attain 98% of its original module efficiency while conventional counterparts only maintain 95%. Additionally, the module's high reliability, exceptional durability, and outstanding performance are guaranteed by BenQ Solar’s high quality control standards and UL-certified in-house laboratories.

Highly Strengthened Design
- Module complies with advanced loading tests to meet 5400 Pa loading requirements
PID-Free
Superior Weak Light Performance
- Improved absorption of long wavelength light
Flammability Test
- Low ignitability ensuring fire safety
IP-67 Rated Junction Box
- Advanced water and dust proof level
Resistance to Salt Corrosion and Humidity
- Module complies with IEC 61701: Salt Mist Corrosion Testing
Ammonia Test
- Reliable in ammonia rich environment

Module size: 1639 x 983 x 40 mm
Weight: 18.5 kg
Mechanical resistance: at load compression up to 5400 Pa
Connector: TE Connectivity PV4: 1 x 4 mm² (0.04 x 0.16 in²),
Solar Cells Solar Cells: 60 pcs
Efficiency: 17.1%
Power (Pmpp) 275 Wp
Nominal voltage (Vmpp): 32.3 V
Rated current (Impp): 8.52 A
Open circuit voltage (Voc): 38.7V
Short-circuit current (Isc): 9.03 A
Thermal properties
Operating temperature -40 ... +85 ° C
Coefficient of temperature Pmpp -0.42% / K
Coefficient of temperature Voc -0.30% / K
Temperature coefficient Isc 0,05% / K
Read more
224.16 EUR VAT included
The product is in stock
Nou
Details
10
Polycrystalline Solar Panel Luxor Solo Line 50W LX-50P
  • Brand: Luxor
Stand-alone photovoltaic systems can be installed wherever supply of electricity from a power grid is unavailable, uneconomic or not desirable. In situations such as these, Luxor offers specially developed, high-quality, efficient off-grid modules, which are also ideal for 12 V. The Solo Line modules are suitable for all kinds of power generation in the leisure sector or for professional applications such as holiday, garden or residential homes, mobile systems in caravans or boats, solar pumps for drinking water supply and irrigation, and in traffic systems such as parking ticket machines, traffic control systems or even street lamps, measurement systems or telecommunication systems.
The compact and sturdy stand-alone PV module is the practical solution and ideal for applications with no connection to the power grid. Selecting Luxor off-grid modules provides solutions even for the most demanding requirements.

Electric data LX - 50P
Article description LX - 50P / 156 x 52 - 36
Nominal power Pmpp [Wp] 50
Power tolerance 0/5%
Nominal current IMPP [A] 2.88
Nominal voltage Vmpp [V] 17.44
Short circuit current Isc [A] 3.24
Open circuit voltage [V] 21.60
Max. System voltage [V] 400

Temperature coefficient [% / ° C] LX - 50P
Coefficient of temperature [P] - 0.45%
Temperature coefficient [I] 0.05%
Coefficient of temperature [V] - 0.32%

LX - 50P Specifications
Cell size 52 x 156 mm
Number of cells | Cell type 4 x 9 | poly
Weight 5.5 kg
Cable length 850 mm
Cable diameter 4 mm2
Socket IP 54
Read more
69.90 EUR VAT included
The product is in stock
Details
11
Polycrystalline solar panel 20Wp BLD20-36P
  • Brand: Powersave
The polycrystalline solar module BLD20-36P with a nominal power of 20 watts is suitable due to its low nominal voltage of 17.5 V excellently charging 12 volts batteries and in series connected also for 24 Volt batteries.
The preVent solar module consists of different laminated layers. At the bottom is a white plastic backside, a double-sided adhesive film, the actual doped wafer, a double-sided adhesive film and then a specially hardened glass surface. The individual components are pressed together under pressure and temperature.As a result, the back and front sides are very well protected against the penetration of moisture

Module type 20-36P - BLD
Max. Power (Pmax) 20 W
Max. Voltage (Vmp) 17.5V
Max. Current (imp) 1.15 A
Open circuit voltage (Voc) 21.6V
Short circuit current (Isc) 1.3A
Dimensions 476 x 350 x 25 mm
Mass 2 kg
Possibility to connect the module Can with clamps
Frame color anodised silver
Read more
32.93 EUR VAT included
The product is in stock
Details
12

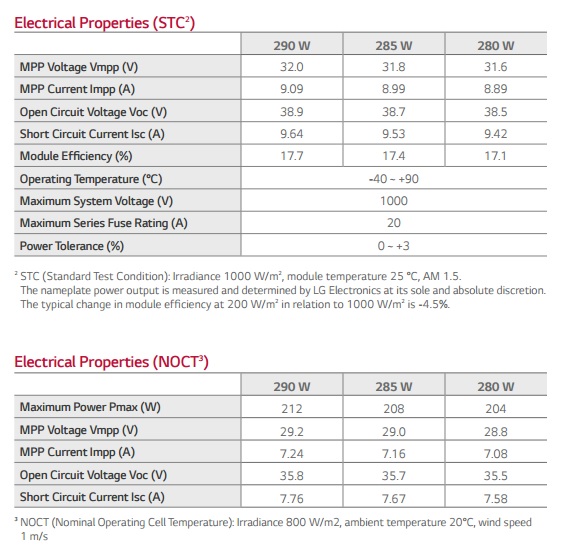

Monocrystalline Solar Panel LG LG285S1C-L4 MonoX AWM 285Wp
  • Brand: LG
LG MonoX® 2 – A NEW CLASS OF ITS OWN
The next generation MonoX® 2 by LG combines everything a solar module needs: long service life and ease of use as well as an elegant exterior and high efficiency.
You can rely on LG. We test our products with double the intensity specified in the IEC standard. This quality is valued by installers across Europe, which is why they have awarded our LG solar modules the Top Brand PV stamp of quality for the highest recommendation rates for the second time in a row. Moreover, they have already received the prestigious Intersolar Award as well as the Plus X Award – one of the biggest innovation awards for technology, sport and lifestyle.
LG MonoX® 2 is LG Electronics’ high-quality monocrystalline module. The quality is the result of our strong commitment to developing a module to improve benefits for customers. Features of MonoX® 2 include durability, convenient installation, and aesthetic exterior.

Enhanced Performance Warranty
LG MonoX® 2 has an enhanced performance warranty. The initial degradation of cells has been improved from -3% to -2%, and the annual rate of degradation has fallen from -0.7%/year to -0.6%/ year.
Improved Product Warranty
As well as the enhanced performance warranty, LG has extended the product warranty of the LG MonoX® 2 for an additional 2 years.
Outstanding Durability
With is newly reinforced frame design, the LG MonoX® 2 can endure a front load up to 6000 Pa, and a rear load up to 5400 Pa.
Reduced LID
The LG MonoX® 2 has reduced the initial degradation of solar cells by applying LG’s new LiLY (LID-improvement for Lifetime Yield) Technology, which controls the reaction of Boron and Oxygen, a key factor of LID (Light Induced Degradation).
Aesthetic Roof
LG MonoX® 2 has been designed with aesthetics in mind; thinner wires that appear all black at a distance. The product can increase the value of a property with its modern design.
Light and Convenient
LG MonoX® 2 has been carefully designed, it weighs just 17kg and has better grips
that allow for quick installation.
Read more
254.75 EUR VAT included
The product is in stock
Details
13
Photovoltaic Panel C-Si Off-grid SOLARPOWER 15W-12V XUNZEL with cable 2+2M SOLZTK15
  • Brand: Xunzel
Off-Grid High-Efficiency Solar Photovoltaic Panels for Battery Charging
Designed for Off-Grid & Off-Shore systems
Ready to connect and use. Secure and easy wiring
SOLARPOWER™ includes long pre-assembled solar cables ready to connect to the solar charge controller
36-cells modules, best option to charge 12V batteries (72-cells modules for 24V batteries)
Extendable. High power systems can be achieved connecting strings in parallel
Silicon Crystalline (c-Si) Solar PV modules
High-quality, very reliable and high-performance
Corrosion resistant junction box to protect electrical connections
Hardened protective glass protects the cells. Also the cells are embedded in transparent EVA (Ethylene-Vinyl-Acetate)
Flash and Electroluminescence Tested
Positive performance tolerance

Pmax: 15W
V: 12VCC
Vmp: 17.60V
Imp: 0.85A
Voc: 21.6V
Isc: 0.91A
Cells: 36
Cable length: 2000mm
Weight: 1.50kg
Dimensions (mm): 386x352x25
Read more
64.17 EUR VAT included
The product is in stock
Details
14
Monocrystalline Solar Panel BenQ Green Triplex PM060M02 280W
  • Brand: BenQ
GreenTriplex PM060M02, a mono-crystalline module for residential and commercial applications, can generate higher power output for one of its premium product features – “Superior Weak Light Performance.”

Under weak light conditions*, GreenTriplex PM060M02 can still attain 98% of its original module efficiency while conventional counterparts only maintain 95%. Additionally, the module's high reliability, exceptional durability, and outstanding performance are guaranteed by BenQ Solar’s high quality control standards and UL-certified in-house laboratories.

Highly Strengthened Design
- Module complies with advanced loading tests to meet 5400 Pa loading requirements
PID-Free
Superior Weak Light Performance
- Improved absorption of long wavelength light
Flammability Test
- Low ignitability ensuring fire safety
IP-67 Rated Junction Box
- Advanced water and dust proof level
Resistance to Salt Corrosion and Humidity
- Module complies with IEC 61701: Salt Mist Corrosion Testing
Ammonia Test
- Reliable in ammonia rich environment

Module size: 1639 x 983 x 40 mm
Weight: 18.5 kg
Mechanical resistance: at load compression up to 5400 Pa
Connector: TE Connectivity PV4: 1 x 4 mm² (0.04 x 0.16 in²)
Solar Cells Solar Cells: 60 pcs
Efficiency: 17.4%
Power (Pmpp) 280 Wp
Nominal voltage (Vmpp): 32.7 V
Rated current (Impp): 8.57 A
Open circuit voltage (Voc): 38.9V
Short-circuit current (Isc): 9.06 A
Thermal properties
Operating temperature -40 ... +85 ° C
Coefficient of temperature Pmpp -0.42% / K
Coefficient of temperature Voc -0.30% / K
Temperature coefficient Isc 0,05% / K
Read more
230.11 EUR VAT included
The product is in stock
Details
15
Monocrystalline solar panel 30Wp BLD30-36M
  • Brand: Powersave
Technical specifications

Type PV-30-M-36
Peak power (Pmax) 30 W
Power tolerance 0 ~ 3%
Open circuit voltage (Voc) 22.5 volts
Max. Working voltage (Vmpp) 18.4 volts
Short circuit current (Isc) 1.83 A
Max. shunt 1.64 A
Max. system voltage DC 1000 V
Working temperatures -40 ° C ~ + 80 ° C
Dimensions 620 x 355 x 30 mm
Mass 2.68 kg
Data under standardized test conditions (STC) AM = 1.5 E = 1000W / m² Tc = 25 ° C
Application class A
Corresponds to standards
IEC / EN 61215: 2005;
IEC / EN 61730-1 A2
IEC / EN 61730-2 A1
Read more
56.31 EUR VAT included
The product is in stock
Details
16
Monocrystalline Solar Panel LG MonoX Plus LG295S1C-A5 - 295 Wp
  • Brand: LG
Enhanced Performance Warranty
LG Mono X® Plus has an enhanced performance warranty. The initial degradation of cells has -2, and the annual rate of degradation has fallen -0.55/yr.
Reduced LID
LG Mono X® Plus has reduced the initial degradation of solar cells by applying LG’s new LiLY (LID-improvement for Lifetime Yield) Technology, which controls the reaction of Boron and Oxygen, the main cause of LID (Light Induced Degradation).
Improved Product Warranty
As well as the enhanced performance warranty, LG Mono X® Plus is covered by product warranty for 12 years.
Light and Convenient
LG Mono X® Plus has been carefully designed, it weighs just 18.0kg(39.69 lb) and has better grips that allow for quick installation.


Mechanical Properties
Cells    6 x 10
Cell vendor    LG
Cell type    Monocrystalline / P-type
Cell dimensions    161.7 x 161.7 mm / 6 inches
# of busbar    4
Dimensions (L x W x H)    1686 x 1016 x 40 mm / 66.38 x 40 x 1.57 inch
Front Load    6000Pa
Rear Load    5400Pa
Weight    18 kg
Connector type    MC4
Junction box    IP68 with 3 Bypass Diodes
Cable    1000 mm x 2 ea / 39.37 in x 2 ea
Glass    High transmission tempered glass
Frame    Anodized aluminium
Certifications and Warranty
Certifications    IEC 61215, IEC 61730-1/-2, UL 1703, IEC 61701 (Salt mist corrosion t est), IEC 62716 (Ammonia corrosion test), ISO 9001
Module Fire Performance (USA)    Type 1
Fire Rating (for CANADA)    Class C (ULC/ORD C1703)
Product warranty    12 years
Output warranty of Pmax    Linear warranty**
**    1) 1st year : 98%, 2) After 2nd year : 0.55% annual degradation, 3) 25 years : 84.8%
Temperature Characteristics
NOCT    45 ± 3 °C
Pmpp    -0.41%/°C
Voc    -0.30 %/°C
Isc    0.03 %/°C
Electrical Properties (STC*)
Maximum Power (Pmax)    295
MPP voltage (Vmpp)    31.3
MPP current (Impp)    9.43
Open circuit voltage (Voc)    38.6
Short circuit current (Isc)    10.02
Module efficiency (%)    17.2
Operating temperature (°C)    -40 ~ +90
Maximum system voltage (V)    1000
Maximum series fuse rating (A)    20
Power tolerance (%)    0 ~ +3
*    STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion.
Electrical Properties (NOCT*)
Maximum power(Pmax)    216
MPP voltage (Vmpp)    28.7
MPP current (Impp)    7.53
Open circuit voltage (Voc)    35.7
Short circuit current (Isc)    8.06
*    NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s
Read more
302,99 EUR 254.75 EUR VAT included
The product is in stock
-16%
Details
17
Photovoltaic Panel C-Si Off-grid SOLARPOWER 30W-12V XUNZEL with cable 2+2M SOLZTK30
  • Brand: Xunzel
Off-Grid High-Efficiency Solar Photovoltaic Panels for Battery Charging
Designed for Off-Grid & Off-Shore systems
Ready to connect and use. Secure and easy wiring
SOLARPOWER™ includes long pre-assembled solar cables ready to connect to the solar charge controller
36-cells modules, best option to charge 12V batteries (72-cells modules for 24V batteries)
Extendable. High power systems can be achieved connecting strings in parallel
Silicon Crystalline (c-Si) Solar PV modules
High-quality, very reliable and high-performance
Corrosion resistant junction box to protect electrical connections
Hardened protective glass protects the cells. Also the cells are embedded in transparent EVA (Ethylene-Vinyl-Acetate)
Flash and Electroluminescence Tested
Positive performance tolerance

Pmax: 30W
V: 12VCC
Vmp: 18.10V
Imp: 1.66A
Voc: 21.8V
Isc: 1.77A
Cells: 36
Cable length: 2000mm
Weight: 3.09kg
Dimensions (mm): 670x380x30
Read more
85.41 EUR VAT included
The product is in stock
Details
18
Photovoltaic Solar Panel 12V SOLARTHIN 2,5W-12V XUNZEL
  • Brand: Xunzel
Photovoltaic Solar Panels for Charging and Maintenance of 12V Batteries
They are made in the superstrate configuration using tempered glass, which is specially designed for solar applications. Using the latest silicon deposition technology, we can manufacture different sizes, for different powers and voltages. Serial connections are made with laser process, so no mechanical connections are required.

Our panels absorb a wide range of wavelengths, so they generate energy from the first sunlight in the morning until the latest sunlight in the afternoon, even on cloudy days. These panels are designed to charge and maintain 12V batteries like those used in cars, boats, caravans, motorcycles, snowmobiles, etc. or small 12V systems as electrification doors, security systems, etc.
Through the energy generated by the panels, the batteries are prevented from the typical self-discharge and are maintained themselves at the optimum charge for when we need to use them. Its capabilities and performance features make them the ideal choice in many occasions.

Our amorphous solar panels operate very well in all weather conditions, even on cloudy days or under unavoidable shadows situations. This is especially very useful in not sunny locations or especially rainy climates.

These panels are maintenance-free and they are very easy to install. Armed with bypass diodes protection, are made of very strong materials and shockproof shatterproof glass.

• Easy: Very easy to use and install, with all kind of connectors included, such as, battery cable clamp, male and female CLA socket and extra cable. Lightweight. Maintenance-free.
• Reliable: They charge batteries in all weather conditions. They are weatherproof and shock resistant. Shatterproof tempered glass.
• Electrical Connection: Corrosion resistan junction box for more protection. Our modules are delivered with pre-assembled solar cables to enable quick and secure wiring without the need of special tools.
• The 20W model: It requires a solar charge controller.

Technical data:
Pmax: 2.5W
V: 12V
Vmp: 15V
Imp: 167 mA
Voc: 21.5V
Temperature range: -40°C / + 80°C
Connector: XUI
Dimensions (mm): 325x125x22
Cable length (mm): 1800
Read more
22.31 EUR VAT included
The product is in stock
Details
19
Monocrystalline Solar Panel Luxor Solo Line 100Wp LX-100M
  • Brand: Luxor
Stand-alone photovoltaic systems can be installed wherever supply of electricity from a power grid is unavailable, uneconomic or not desirable. In situations such as these, Luxor offers specially developed, high-quality, efficient off-grid modules, which are also ideal for 12 V. The Solo Line modules are suitable for all kinds of power generation in the leisure sector or for professional applications such as holiday, garden or residential homes, mobile systems in caravans or boats, solar pumps for drinking water supply and irrigation, and in traffic systems such as parking ticket machines, traffic control systems or even street lamps, measurement systems or telecommunication systems.
The compact and sturdy stand-alone PV module is the practical solution and ideal for applications with no connection to the power grid. Selecting Luxor off-grid modules provides solutions even for the most demanding requirements.

Electric data LX - 100M
Article description LX-100M / 125-36
Nominal power Pmpp [Wp] 100
Power tolerance 0/5%
Rated current IMPP [A] 5.39
Nominal voltage Vmpp [V] 18.70
Short circuit current Isc [A] 5.87
Open circuit voltage [V] 21.60
Max. System voltage [V] 1000

Temperature coefficient [% / ° C] LX - 100M
Coefficient of temperature [P] - 0.49%
Temperature coefficient [I] 0.05%
Temperature coefficient [V] - 0.35%

LX - 100M Specifications
Cell size 125 x 125 mm
Number of cells | Cell type 4 x 9 | mono
Weight 7.8 kg
Cable length 850 mm
Cable diameter 4 mm2
Diode 2 x 12 A
Socket IP 65
Read more
112.40 EUR VAT included
The product is in stock
Details
20
Monocrystalline Solar Panel BenQ SunForte PM096B00 330W
  • Brand: BenQ
SunForte PM096B00, our most powerful PV module, is equipped with Back-Contact technology, and delivers the top high efficiency, at up to 20.4%, with power output up to 333W. Its outstanding high efficiency enables more energy output than conventional counterparts when given the same amount of space.* With its transformer-less solution, LID(Light Induced Degradation)-Free technology and better temperature coefficient, PM096B00 performs better in energy yield than conventional c-Si (crystalline silicon) modules.

Highly Strengthened Design
- Module complies with advanced loading tests to meet 5400 Pa loading requirements
Resistance to Salt Corrosion and Humidity
- Module complies with IEC 61701: Salt Mist Corrosion Testing
Back Contact Cells
- No string in the front side enhances light conversion space
IP-67 Rates Junction Box
- Advancde water and dust proof level
Transformer less
- Validates the compatibility with transformer-less inverters at high system voltage.
PID-Free
Superior Performance at High Temperatures
- Less power loss in hot weather conditions due to the low temperature coefficient

Module size: 1559 x 1046 x 46 mm
Weight: 18.6 kg
Mechanical resistance: at load compression up to 5400 Pa
Connector: TE
Connectivity PV4: 1 x 4 mm² (0.04 x 0.16 in²),
Solar Cells Solar Cells: 96 pcs
Efficiency: 20.03%
Power (Pmpp) 330 Wp
Nominal voltage (Vmpp): 54.7 V
Rated current (Impp): 6.04 A
Open circuit voltage (Voc): 64.9V
Short-circuit current (Isc): 6.52 A
Thermal properties
Operating temperature -40 ... +85 ° C
Temperature coefficient Pmpp -0.33% / K
Coefficient of Voc -0.26% / K
Temperature coefficient Isc 0,05% / K
Read more
404.33 EUR VAT included
The product is in stock
Details
21
Multicrystalline Solar Panel Munchen Solar 250W MSP250AS-30
  • Brand: Munchen Solar
Performance
Tight positive power tolerance of -0%/W to +3%/W ensures you receive modules at or above nameplate power and contributes to minimizing module mismatch losses leading to improved system yield.
Multicrystalline silicon solar cells with low-iron tempered high transmission and textured glass deliver a module efficiency of up to 15.4%, maximizing the kWh output of your system per unit area.
Quality & Reliability
• Rigorous quality controls meet the highest international standards: ISO 9001: 2008, ISO 14001: 2004 and ISO 17025: 2005
• Tested for harsh environments (salt mist and ammonia corrosion testing: IEC 61701, DIN 50916:1985 T2)
• Modules independently tested to ensure conformance with certification and regulatory standards.

Read more
201.64 EUR VAT included
The product is in stock
Details
close

The product was susccessfully added to your shopping cart!

View cart Ship order
close

Compare

You must add at least one product to compare products.
