Display: 145-168 from 330 products
M8 circular connector Male/Female 3 pole cable 5m (bag of 2)
Using synchronous rectification, full load efficiency exceeds 95%.
When installed with the screw terminals oriented downwards.
No special tools needed for installation.
Models: 24 Volt

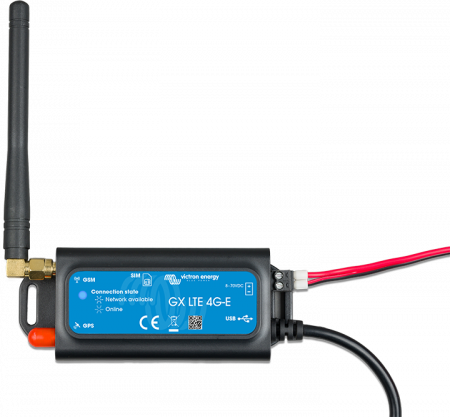

GX LTE 4G este un modem celular pentru gama noastră de produse de monitorizare GX. Acesta asigură o conexiune mobilă la Internet pentru sistem și conexiuni la Portalul VRM. Funcționează în rețelele 2G, 3G și 4G.
Există mai multe modele, consultați manualul pentru a vedea care model se potrivește cel mai bine cu benzile de rețele celulare disponibile din zona dvs.
GX LTE include un receptor GPS încorporat. Când antena GPS opțională este instalată, sistemul poate fi monitorizat, precum și încadrat geografic (geo-fence) pe Portalul VRM.

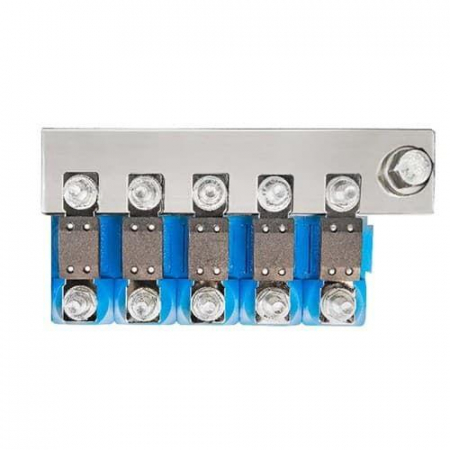

Barele coducătoare sunt utilizate pentru distribuția curentilor inalti și în același timp furnizează conexiuni pentru baterii și/sau echipamente de curent continuu.
Oferim o serie de bare coducătoare cu clase de curent diferite și un număr diferit de terminale de conectare. Fiecare bară coducătoare este prevăzută cu un capac de protecție detașabil.
Modele disponibile:
Pentru mai multe informații tehnice și pentru dimensiunile barei coducătoare, consultați fișa tehnică.

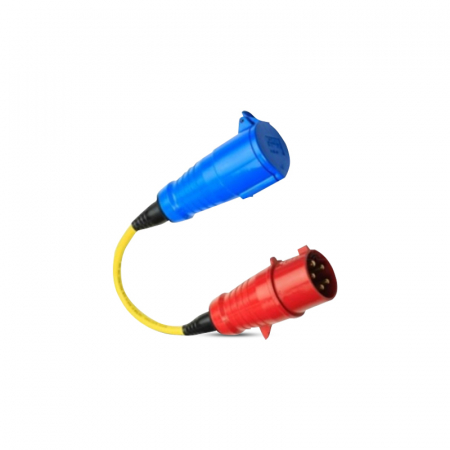

Adapter Cord 32A 3 phase to single phase
GX LTE 4G este un modem celular pentru gama noastră de produse de monitorizare GX. Acesta asigură o conexiune mobilă la Internet pentru sistem și conexiuni la Portalul VRM. Funcționează în rețelele 2G, 3G și 4G.
Există mai multe modele, consultați manualul pentru a vedea care model se potrivește cel mai bine cu benzile de rețele celulare disponibile din zona dvs.
GX LTE include un receptor GPS încorporat. Când antena GPS opțională este instalată, sistemul poate fi monitorizat, precum și încadrat geografic (geo-fence) pe Portalul VRM.

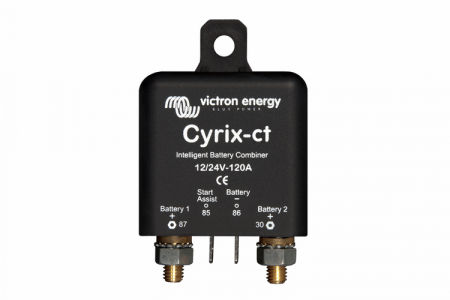

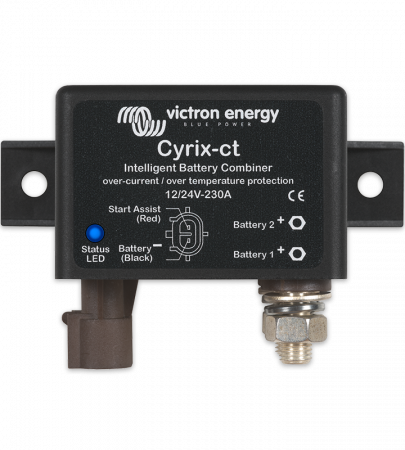

Some battery combiners (also called voltage controlled relay, or split charge relay) will disconnect a battery in case of a short but high amperage load. A battery combiner also may fail to connect a large but discharged battery bank because the DC voltage immediately drops below the disengage value once the batteries are connected.
The software of the Cyrix-ct 12/24 does more than simply connect and disconnect based on battery voltage and with a fixed time delay. The Cyrix-ct 12/24 looks at the general trend (voltage increasing or decreasing) and reverses a previous action only if the trend has reversed during a certain period of time. The time delay depends on the voltage deviation from the trend.
(for Battery Combiners with multiple engage/disengage profiles, please see the Cyrix-i 400)
Cyrix 12/24-120: 13 mm (M6) Cyrix 12/24-230: 16 mm (M8)
The Cyrix will disengage in case of excessive contact temperature, and reengage again after it has cooled down.
LED status indication (Cyrix 12/24 230 only)
LED on: engaged LED 10 s flash: disengaged
LED 2 s flash: connecting LED 2 s blink: disconnecting
LED 0,25 s blink: alarm (over temperature; voltage > 16 V; both batteries < 10 V; one battery < 2 V)
(multiply by two for 24 V)
The Cyrix-ct 12/24 automatically detects system voltage.
Cyrix battery combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.
In a typical setup the alternator is directly connected to the starter battery. The accessory battery, and possibly also a bow thruster and other batteries are each connected to the starter battery with Cyrix battery combiners. When a Cyrix senses that the starter battery has reached the connect voltage it will engage, to allow for parallel charging of the other batteries.
The Cyrix senses the voltage of both connected batteries. It will therefore also engage if for example the accessory battery is being charged by a battery charger.
The Cyrix-ct 12/24 has a dual power supply. It will therefore also close if the voltage on one battery is too low to operate the Cyrix.
In order to prevent unexpected operation during installation or when one battery has been disconnected, the Cyrix-ct 12/24 will not close if the voltage on one of the two battery connections is lower than 2 V (12 V battery) or 4 V (24 V battery).
The Cyrix can also be engaged with a push button (Cyrix remains engaged during 30 seconds) or a switch to connect batteries in parallel manually. This is especially useful in case of emergency when the starter battery is discharged or damaged.
Use the AC Current sensor to measure and visualise the solar production of a PV Inverter. The measurements will be visible on the GX device and on the VRM Portal.
The sensor is a simple external current sensor, which measures AC Current. Together with the voltage measurements is calculated into Apparent Power (VA) and Energy (kWh). The sensor can be wired to either the AUX input or the Temperature-input of Multi and Quattro inverter/chargers.
Alarma pentru baterie Battery Alarm GX este un panou de alarmă, mic și la un preț redus, care monitorizează bancul dvs. de baterii. Acesta este dotat atât cu alarme auditive cât și vizuale, precum și cu contacte fără potențial electric cu contacte deschise sau închise în stare de repaus. Pragul și histerezisul alarmei sunt programabile prin intermediul întrerupătoarelor de tip DIP-Switch. Consultați manualul pentru mai multe informații.

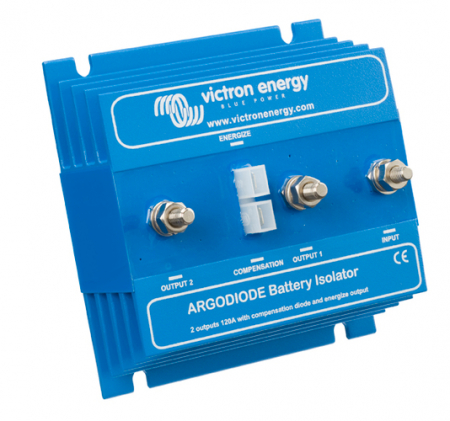

Diode battery isolators allow simultaneous charging of two or more batteries from one alternator, without connecting the batteries together. Discharging the accessory battery for example will not result in also discharging the starter battery.
The Argo Battery Isolators feature a low voltage drop thanks to the use of Schottky diodes: at low current the voltage drop is approximately 0,3 V and at the rated output approximately 0,45 V.
All models are fitted with a compensation diode that can be used to slightly increase the output voltage of the alternator. This compensates for the voltage drop over the diodes in the isolator.
Simply inserting the isolator in the cabling between the alternator and the batteries will slightly reduce charge voltage. The result can be that batteries are not charged to the full 100% and age prematurely.
Some alternators need DC voltage on the B+ output to start charging. Obviously, DC will be present when the alternator is directly connected to a battery. Inserting a Diode or FET splitter will however prevent any return voltage/current from the batteries to the B+, and the alternator will not start.
The new ‘AC’ diode isolators feature a special current limited energize input that will power the B+ when the engine run/stop switch is closed.
Diode Battery Combiners are used to guarantee continuous DC power to mission critical equipment, such as an electronic engine control system. With a diode battery combiner two or more DC power sources can be used in parallel to supply the mission critical load. Failure of one source will not interrupt power to the critical load.
The Argo Battery Combiners feature a low voltage drop thanks to the use of Schottky diodes: at low current the voltage drop is approximately 0,3 V and at the rated output approximately 0,45 V.
Warning: hot surface, mount the Argo Diode Battery Combiner on non-flammable surface only!
The MPPT Control lets you see the status as well as setup all BlueSolar MPPT Charge Controllers that have a VE.Direct communications port. The new MPPT Control is mounted in the familiar BMV-700 series housing, maintaining a consistent and professional look to your panels and systems monitoring equipment.
To easily mount the MPPT Control on a wall, instead of flush mounted in a panel, use one of the wall mount enclosures.
Features
1. View live status information, including solar watts, battery voltage, charge current, load current and more.
2. View historical information
A. All-time values
B. 30-day historical values
3. MPPT setup
Barele coducătoare sunt utilizate pentru distribuția curentilor inalti și în același timp furnizează conexiuni pentru baterii și/sau echipamente de curent continuu.
Oferim o serie de bare coducătoare cu clase de curent diferite și un număr diferit de terminale de conectare. Fiecare bară coducătoare este prevăzută cu un capac de protecție detașabil.
Modele disponibile:
Pentru mai multe informații tehnice și pentru dimensiunile barei coducătoare, consultați fișa tehnică.
Barele coducătoare sunt utilizate pentru distribuția curentilor inalti și în același timp furnizează conexiuni pentru baterii și/sau echipamente de curent continuu.
Oferim o serie de bare coducătoare cu clase de curent diferite și un număr diferit de terminale de conectare. Fiecare bară coducătoare este prevăzută cu un capac de protecție detașabil.
Modele disponibile:
Pentru mai multe informații tehnice și pentru dimensiunile barei coducătoare, consultați fișa tehnică.

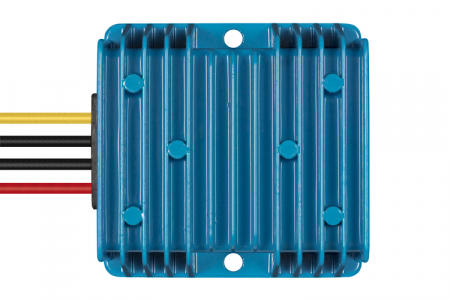

The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
Up to five units can be connected in parallel.
Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40).
Models: 12 / 24 Volt
For low power models: please see Orion-Tr series
One battery with a slightly higher internal leakage current in a 24V or 48V bank of several series/parallel connected batteries will cause undercharge of that battery and parallel connected batteries, and overcharge of the series connected batteries. Moreover, when new cells or batteries are connected in series, they should all have the same initial state of charge. Small differences will be ironed out during absorption or equalize charging, but large differences will result in damage due to excessive gassing (caused by overcharging) of the batteries with the higher initial state of charge and sulphation (caused by undercharging) of the batteries with the lower initial state of charge.
The Battery Balancer equalizes the state of charge of two series connected 12V batteries, or of several parallel strings of series connected batteries.
When the charge voltage of a 24V battery system increases to more than 27,3V, the Battery Balancer will turn on and compare the voltage over the two series connected batteries. The Battery Balancer will draw a current of up to 0,7A from the battery (or parallel connected batteries) with the highest voltage. The resulting charge current differential will ensure that all batteries will converge to the same state of charge.
If needed, several balancers can be paralleled.
A 48V battery bank can be balanced with three Battery Balancers.
Green: on (battery voltage > 27,3V)
Orange: lower battery leg active (deviation > 0,1V)
Orange: upper battery leg active (deviation > 0,1V)
Red: alarm (deviation > 0,2V). Remains on until the deviation has reduced to less than 0,14V, or until system voltage drops to less than 26,6V.
Normally open. The alarm relay closes when the red LED switches on and opens when the red LED switches off.
Two terminals are available to connect a push button. Interconnecting the two terminals resets the relay.
The reset condition will remain active until the alarm is over. Thereafter the relay will close again when a new alarm occurs.
The BMV-702 measures the midpoint of a string of cells or batteries. It displays the deviation from the ideal midpoint in volts or percent.
Separate deviation percentages can be set to trigger a visual/audible alarm and to close a potential free relay contact for remote alarm purposes.
Please see the manual of the BMV-702 for more information about battery balancing.
Comandă de pornire/oprire la distanță
Comanda de pornire/oprire la distanță elimină necesitatea unui întrerupător de înaltă tensiune la intrarea cablurilor. Comanda de pornire/oprire la distanță poate fi acționată cu ajutorul unui comutator de putere mică sau, de exemplu, de către comutatorul de pornire/oprire al motorului (consultați manualul).
Toate modelele sunt protejate împotriva scurtcircuitelor și pot fi instalate în paralel pentru a mări curentul de ieșire. Se poate conecta în paralel un număr nelimitat de unități.
Protecție IP43: Atunci când este instalat cu bornele cu șurub orientate în jos.
Borne cu șurub: Nu sunt necesare scule speciale pentru instalare.
Siguranță: Prezentă doar la modelele cu intrare de 12V și 24V.
Comandă de pornire/oprire la distanță
Comanda de pornire/oprire la distanță elimină necesitatea unui întrerupător de înaltă tensiune la intrarea cablurilor. Comanda de pornire/oprire la distanță poate fi acționată cu ajutorul unui comutator de putere mică sau, de exemplu, de către comutatorul de pornire/oprire al motorului (consultați manualul).
Toate modelele sunt protejate împotriva scurtcircuitelor și pot fi instalate în paralel pentru a mări curentul de ieșire. Se poate conecta în paralel un număr nelimitat de unități.
Protecție IP43: Atunci când este instalat cu bornele cu șurub orientate în jos.
Borne cu șurub: Nu sunt necesare scule speciale pentru instalare.
Siguranță: Prezentă doar la modelele cu intrare de 12V și 24V.
Comandă de pornire/oprire la distanță
Comanda de pornire/oprire la distanță elimină necesitatea unui întrerupător de înaltă tensiune la intrarea cablurilor. Comanda de pornire/oprire la distanță poate fi acționată cu ajutorul unui comutator de putere mică sau, de exemplu, de către comutatorul de pornire/oprire al motorului (consultați manualul).
Toate modelele sunt protejate împotriva scurtcircuitelor și pot fi instalate în paralel pentru a mări curentul de ieșire. Se poate conecta în paralel un număr nelimitat de unități.
Protecție IP43: Atunci când este instalat cu bornele cu șurub orientate în jos.
Borne cu șurub: Nu sunt necesare scule speciale pentru instalare.
Siguranță: Prezentă doar la modelele cu intrare de 12V și 24V.
• Cablu cu protecţie la pătrunderea apei, cu conexiune IP56
• Conector şi fişă turnate etanş
• LED ce indică prezenţa tensiunii
• Capac de protecţie
• Conexiune din oţel inoxidabil Disponibil în: 15M 16A 25M 16A 15M 25A 25M 25A
