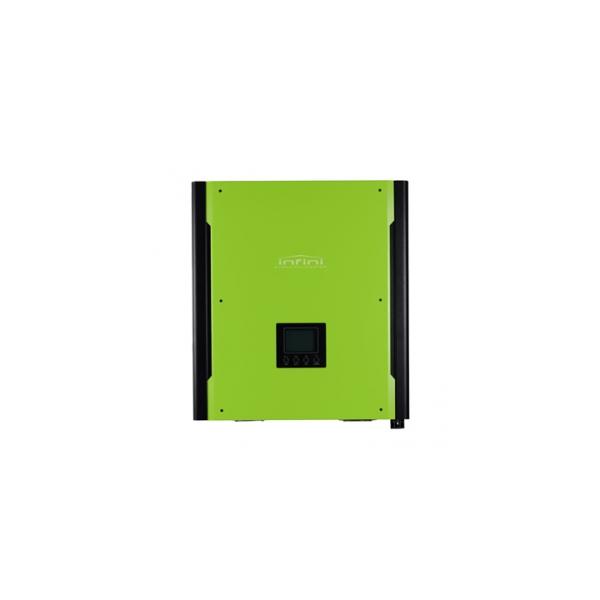

InfiniSolar is a hybrid inverter which combines solar system, AC utility, and battery power source to supply continuous power. It is suitable for remote areas where the cost of utility is too high or emergency usage when utility is not stable.
Main Features
- Pure sine wave output
- Self-consumption and Feed-in to the grid
- Programmable supply priority for PV, Battery or Grid
- User-adjustable battery charging current suits different types of batteries
- Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
- Built-in timer for various mode of on/off operation
- Multiple communication for USB, RS-232, Modbus and SNMP
- Monitoring software for real-time status display and control
PHASE 3-phase in/3-phase out
Max. PV INPUT POWER 14850W
Rated Output Power 10000W
Maximum Charging Power 9600 W
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage/Max. DC Voltage 720 VDC/900 VDC
Start-up Voltage/Initial Feeding Voltage 320 VDC/350 VDC
MPP Voltage Range 400 VDC~800 VDC
Number of MPP Trackers/
Maximum Input Current 2/2x18.6A
GRID OUTPUT (AC)
Nominal Output Voltage 230 VAC (P-N)/400 VAC (P-P)
Output Voltage Range 184 - 265 VAC* per phase
Nominal Output Current 14.5A per phase
Power Factor >0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC) 96%
European Efficiency@Vnominal 95%
OFF-GRID OPERATION
AC INPUT
AC start-up Voltage/
Auto Restart Voltage 120-140 VAC per phase/
180 VAC per phase
Acceptable Input Voltage Range 170-280 VAC per phase
Max. AC Input Current 40A
PV INPUT (DC)
Max. DC Voltage 900 VDC
MPP Voltage Range 400 VDC~800 VDC
Number of MPP Trackers/Max. Input Current 2/2x18.6A
BATTERY Mode Output (AC)
Nominal Output Voltage 230 VAC (P-N)/400 VAC (P-P)
Output Waveform Pure Sinewave
Efficiency (DC to AC) 91%
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage/Max. DC Voltage 720 VDC/ 900 VDC
Start-up Voltage/Initial Feeding Voltage 320 VDC/ 350 VDC
MPP Voltage Range 400 VDC~800 VDC
Number of MPP Trackers/Max. Input Current 2/2x18.6A
GRID OUTOUT (AC)
Nominal Output Voltage 230 VAC (P-N)/400 VAC (P-P)
Output Voltage Range 184-264.5 VAC* per phase
Nominal Output Current 14.5A per phase
AC INPUT
AC Start-up Voltage/Auto Restart Voltage 120-140 VAC per phase/ 180 VAC per phase
Acceptable Input Voltage Range 170-280 VAC per phase
Max. AC Input Current 40A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 230 VAC (P-N)/400 VAC(P-P)
Efficiency (DC to AC) 91%
BATTERY& CHARGER
Nominal DC Voltage 48 VDC
Max. Charging Current Default 60A, 10A-200A (Adjustable)
GENERAL
PHYSICAL
Dimension, D x W x H (mm) 167.5 x 500 x 622
Net weight (kgs) 45
INTERFACE
Communication Port RS-232/USB RS-232/USB and CAN Interface
Intelligent Slot Optional SNMP, Modbus and AS-400 cards available
ENVIRONMENT
Humidity 0~90% RH (Non-condensing)
Operating Temperature -10 to 55 °C
Altitude 0-1000 m
