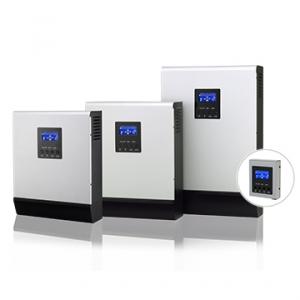

MKS is equipped with MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank. Transformerless design provides reliable power conversion in compact size. Besides, it’s worry-free to start up motor-type loads such as refrigerators, motors, pumps, compressors and laser printers as well as electronic loads like TVs, Computers, power tool and battery chargers.
Main Features
- Pure sine wave inverter
- Output power factor 1 (only 0.8 for 3KP/5KP Models)
- Built-in battery equalization function to extend battery life cycle
- Built-in MPPT solar charge controller
- Selectable input voltage range for home appliances and personal computers
- Selectable charging current based on applications

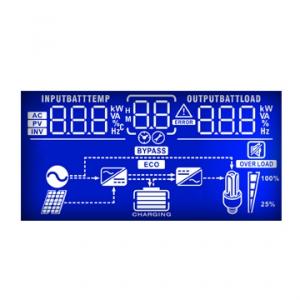

- Configurable AC/Solar input priority via LCD setting
- Compatible to mains voltage or generator power
- Battery equalization for optimized battery performance and lifecycle
- Parallel operation with up to 9 units only available for MKS 3KP/4KVA/5KVA*
RATED POWER 5000VA/ 4000W
Parallel Capability No
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 10000VA
Efficiency (Peak) 90%
Transfer Time 10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY & AC CHARGER
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC Max: 58 VDC
Overcharge Protection 60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power 4000 W
MPPT Range @ Operating Voltage 60VDC~ 115VDC
Maximum PV Array Open Circuit Voltage 1455VDC
Maximum Solar Charge Current 80A
Maximum AC Charge Current 60A
Maximum Charge Current 140A
Maximum Efficiency 98%
Standby Power Consumption 2 W
PHYSICAL
Dimension, D x W x H (mm) 120 x 295 x 468
Net Weight (kgs) 13.5
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C to 55°C
Storage Temperature -15°C to 60°C
