Maximum power: 30,000W
Working voltage: 400V
Number of MPPT: 4
MPPT working voltage: 200 V ~ 1000 V
Inverter type: On-grid

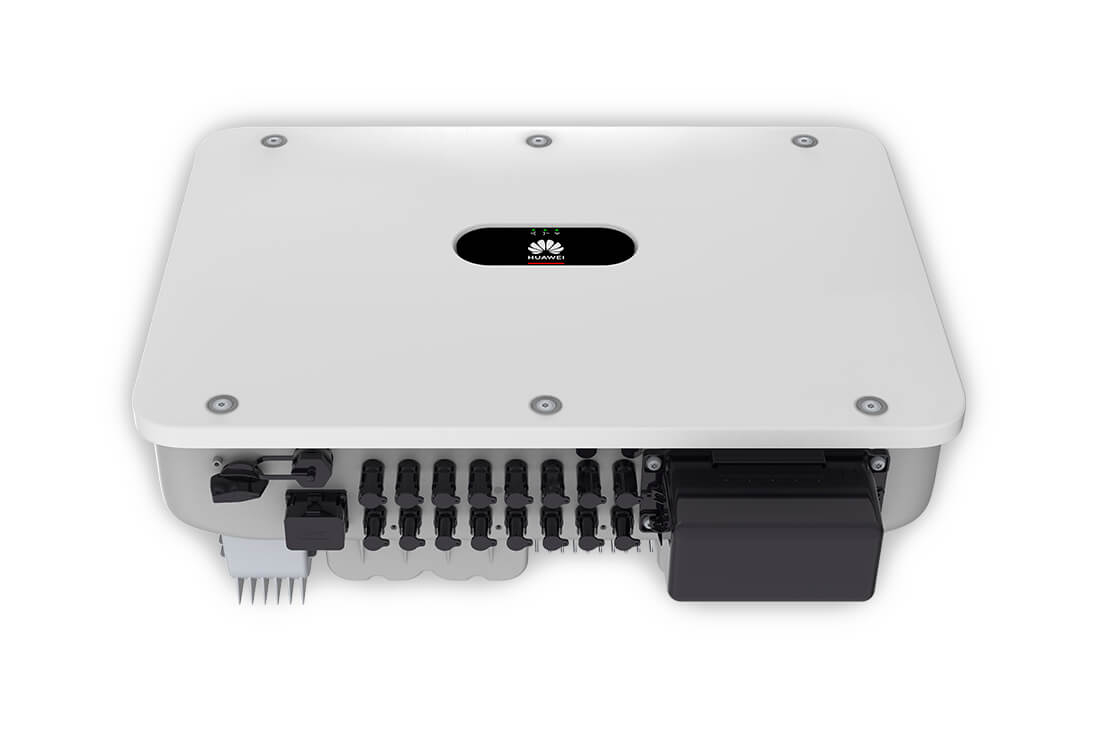

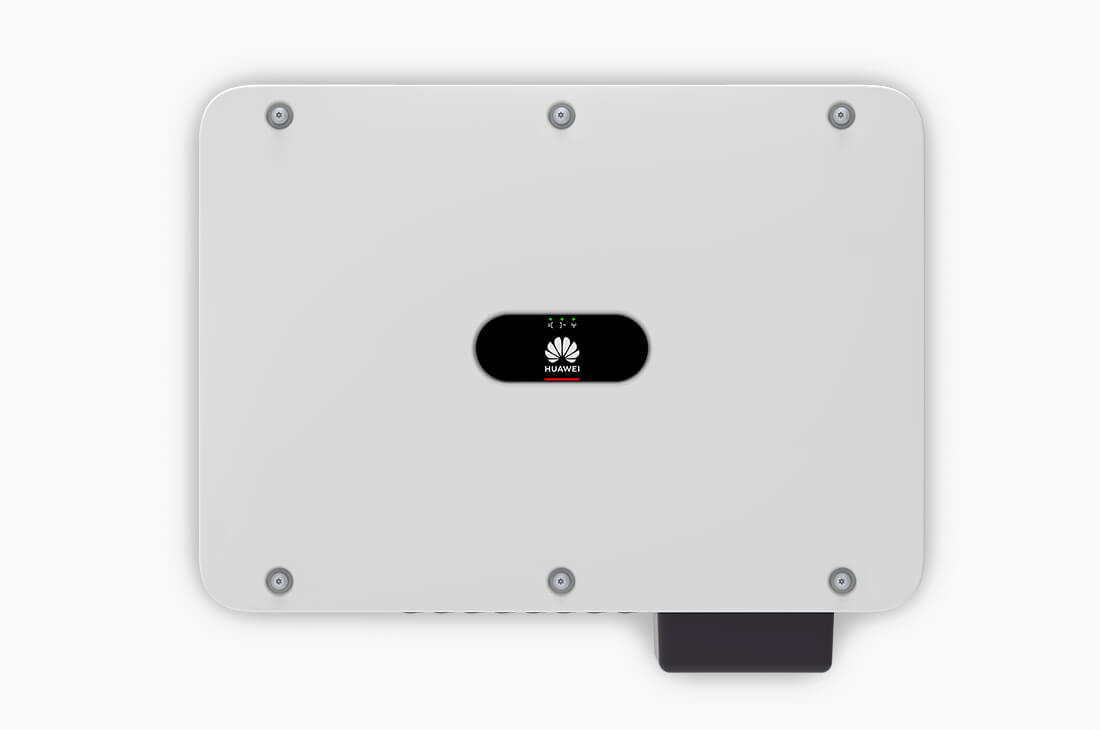

Huawei brings the latest digital and internet technology to large-scale photovoltaic power generation. The solutions make any PV power plant run more efficiently and through a better IT interface.
Maximize your return on investment with Huawei inverters!
Technical Features:
Input
Maximum PV Power: 45000 Wp
Maximum Voltage: 1100 V
Working Voltage: 200 V ~ 1000 V
Starting Voltage: 200V
MPPT Working Voltage: 200 V ~ 1000 V
Maximum Current : 26 A
Number of MPPT: 4
Number of Inputs: 8
Output
Maximum Power: 30,000W
Maximum Apparent Power: 33.000 VA
Working voltage: 400V
Mains frequency: 50 Hz/60 Hz
Maximum output current: 47.9 A
Maximum harmonic distortion: ≤ 3%
For more information please consult the data sheet
