On‑Line double conversion UPS that can be used in both tower and rack configurations
The main parameters of the system and the status of the UPS, including the battery charge level and faults, are displayed on
the LCD screen.
Additional battery cabinets are available to increase the backup time of the UPS. A charger can be added in all battery cabinets for fast, safe charging.
With the reversible screen, the Daker DK UPS can be used in both tower and 19» rack configuration.
The integrated communication software not only controls the UPS and its switch-off if there is a malfunction, and enables the user to test the main functions remotely,communicate via SNMP/Internet/network adaptor and access the functions of the UPS via the Internet, but can also send the user an SMS if specific events occur.
The internal extension connector enables a WEB/SNMP card or a relay interface to be installed which provides insulated contacts for applications on industrial control panels or remote alarm panels.
If there is an electronic fault, overload, overheating or for scheduled maintenance operations, the automatic or manual (optional) bypass ensures continuity of the power supply for critical loads. A bypass switch is available for maintenance.

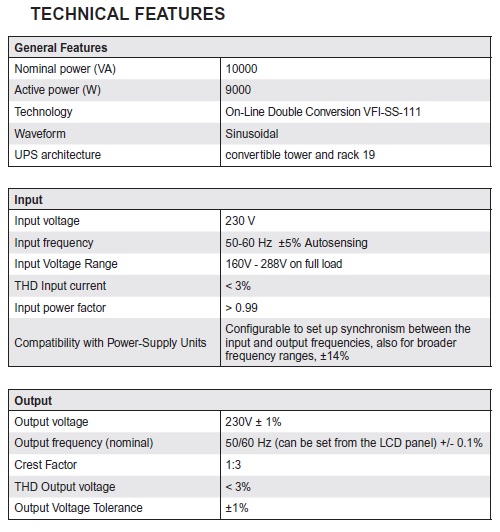

Kva: 5kVA - 10kVA,10kVA - 20Kva
Ups Topology: On‑Line Double Conversion
Ups Type: Computers and Servers
