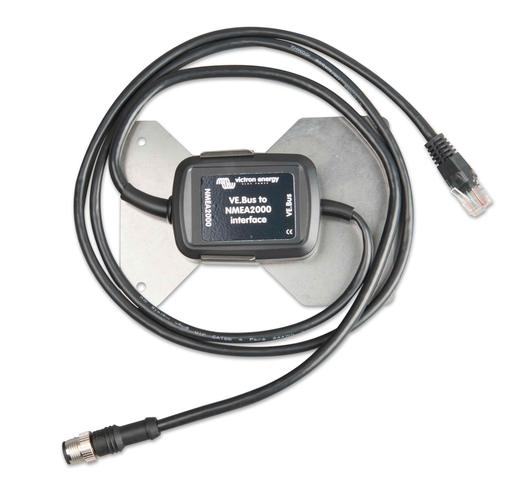

VE.Bus to NMEA2000 interface

Product Code: ASS030520110
260,78 EUR
VAT included
Stock limit
- +
icon Add to cart
The product is in stock

Delivery date: 10 days

Do you need help? +4 03744 99990

Product Details

  • NMEA 2000 Network compatible
  • VE.Net to NMEA 2000 drop cable is equipped with a Micro-C (M12) male connector  to be connected to a corresponding T-connector in the backbone.
  • Operating voltage 7 - 70VDC
  • Typical current consumption 20 mA at 12VDC
  • NMEA2000 Load Equivalent Nr: 1
  • Operating temp -20 to +50 Deg C
  • Dimensions 70 x 50 x 20 mm
  • Compatible with Victron VE Bus products except - Blue Power Panel 2 - Blue Power Panel GX - Victron Global Remote or Ethernet Remote.
  • See instruction manual for a fuller explanation of compatibility.

Data Sheet - click here

  • Brand: Victron Energy
  • Weight: 0.07 kg
  • Description
  • Reviews (0)
Description

This NMEA2000 drop cable connects a VE.Bus product, for example a Multi or Quattro, to a NMEA2000 network. It transmits monitoring information, AC voltages and currents, DC voltages and currents and the state. Other NMEA2000 devices can also send commands to the VE.Bus product to turn it on or off, or change the input current limit.
