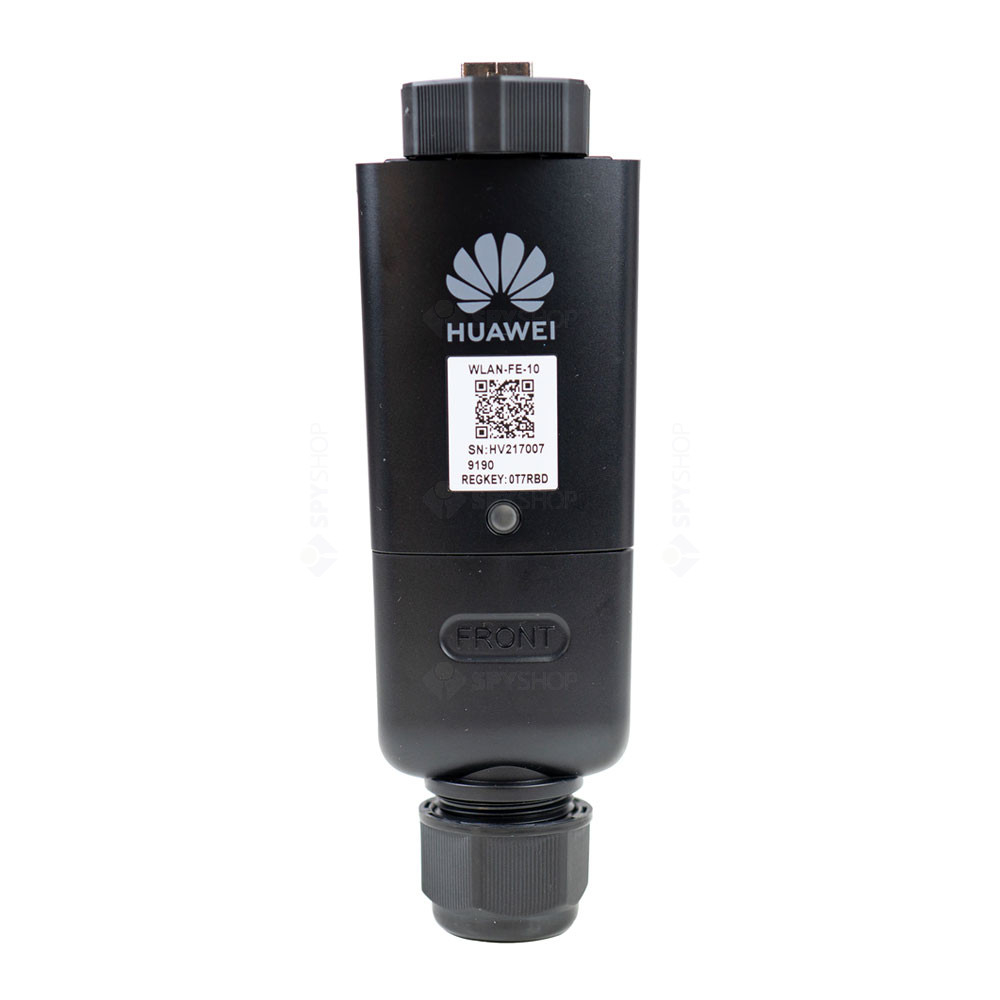

Huawei Smart Dongle-WLAN-FE (SDongleA-05)

Seamless Connectivity for Smart Solar Monitoring

Unlock the full potential of your Huawei solar inverter with the Smart Dongle-WLAN-FE, a compact and powerful communication interface that enables real-time monitoring and smart energy management. Designed for global compatibility and effortless integration, this dongle supports both WLAN and Ethernet connections, making it ideal for residential, commercial, and industrial PV systems.

🔧 Key Features

• Dual Connectivity: Supports both Wi-Fi (802.11 b/g/n) and Fast Ethernet (10/100 Mbps) for flexible installation
• Plug & Play: Simple USB connection to Huawei inverters – no configuration needed
• Multi-Inverter Support: Connects up to 10 inverters simultaneously
• Smart Monitoring: Full integration with Huawei FusionSolar App for real-time data, alerts, and performance tracking
• Robust Design: IP65-rated for outdoor use, with wide temperature and humidity tolerance
• Secure Communication: WPA/WPA2 encryption with TKIP/CCMP/AES protocols

📦 Technical Highlights

• Model: SDongleA-05
• Power Consumption: 2.5 W
• Operating Temp: –30°C to +65°C
• Dimensions: 146 × 48 × 33 mm
• Weight: 90 g
• Max Altitude: 4000 m
• Certifications: CE, SRRC, RCM
• Compatible Inverters: Huawei SUN2000 series (L1, M1, M5, MB0, MAP0, LC0)
