VRLA Ultracell Deep Cycle GEL 12V, 100Ah Rechargeable battery UCG100-12 F10

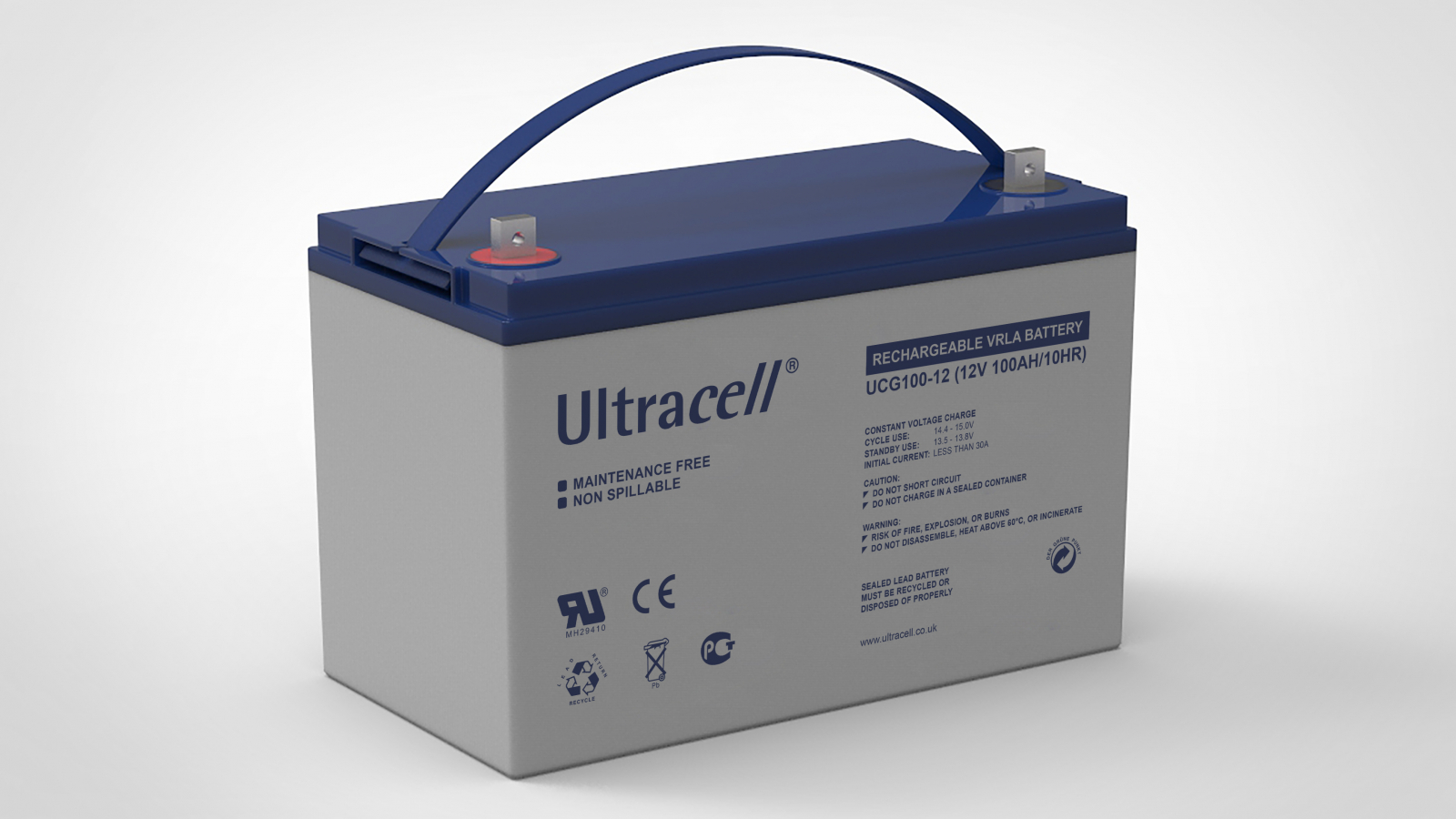

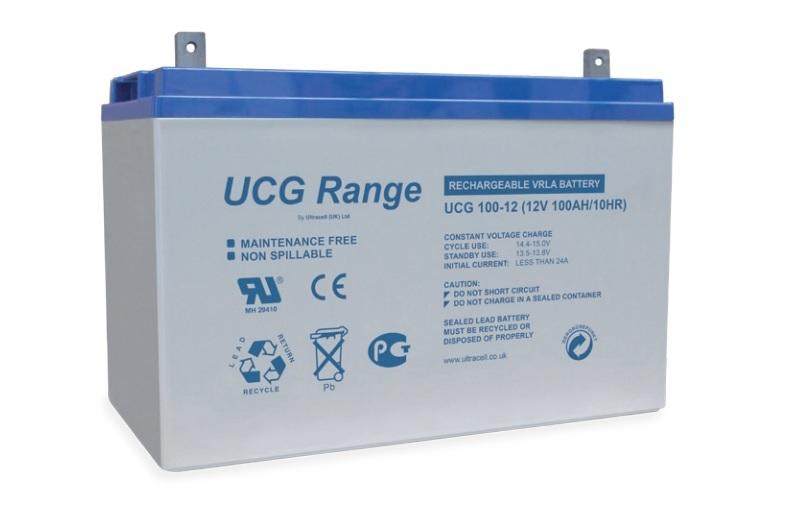

Ultracell VRLA GEL 12V, 100Ah Battery UCG100-12
Lifetime: up to 10 years
Standards: ISO 9001
Technology: VRLA GEL
Tray: ABS (in optional UL94V0)
Electrolyte: H2SO4 GEL
Plates: planar 3D Alloys: PbCaSn
Connectors: silver copper alloy
Charging temperature: 0°C and 40°C
Discharge temperature: -15°C to 50°C.
Storage temperature: -15°C to 40°C
Charging current: less than 25A
Max cyclic voltage: 14.4V to 15V
Max standby voltage: 13.6V 13.8V to
Max discharge: 1100A (5s)
Internal resistance: 5.5 mOhm
Capacity at 25°C: 100Ah C20 at 1.80V / cell
90Ah C20 at 1.80V / cell
80Ah C5-1.75V / cell
69Ah C3 to 1.75V / cell
55Ah C1 at 1.60V / cell

Length: 330 mm
Depth: 173 mm
Height: 212 mm
Maximum Height: 233 mm
Weight: 31 kg
Terminals: F11

Applications:
* Emergency Lights
* Alarms and Security
* Aircraft Signals
* Aircraft Signals
* Industrial Power Backup
* Ups
* Telecom
* Medical Devices
* Marine Applications
* Aerospace Applications
