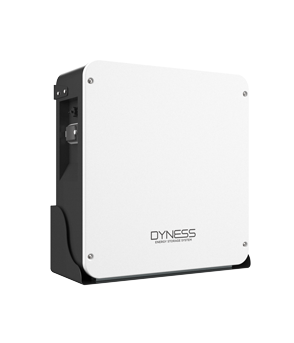

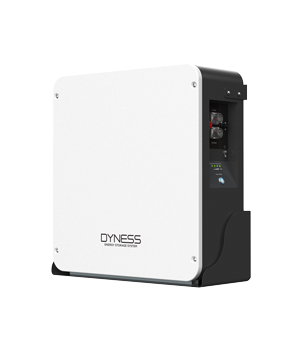

Dyness power module PowerDepot H5B
![Dyness power module PowerDepot H5B [1]](https://gomagcdn.ro/domains/poweracu.com/files/product/original/dyness-power-module-powerdepot-h5b-669798.png "Dyness power module PowerDepot H5B [1]")
![Dyness power module PowerDepot H5B [2]](https://gomagcdn.ro/domains/poweracu.com/files/product/original/dyness-power-module-powerdepot-h5b-859693.png "Dyness power module PowerDepot H5B [2]")
![Dyness power module PowerDepot H5B [3]](https://gomagcdn.ro/domains/poweracu.com/files/product/original/dyness-power-module-powerdepot-h5b-396420.png "Dyness power module PowerDepot H5B [3]")
![Dyness power module PowerDepot H5B [0]](https://gomagcdn.ro/domains/poweracu.com/files/product/medium/dyness-power-module-powerdepot-h5b-669798.png "Dyness power module PowerDepot H5B [0]")
![Dyness power module PowerDepot H5B [1]](https://gomagcdn.ro/domains/poweracu.com/files/product/medium/dyness-power-module-powerdepot-h5b-859693.png "Dyness power module PowerDepot H5B [1]")
![Dyness power module PowerDepot H5B [2]](https://gomagcdn.ro/domains/poweracu.com/files/product/medium/dyness-power-module-powerdepot-h5b-396420.png "Dyness power module PowerDepot H5B [2]")
Battery Type: LiFePO4
Nominal Battery Energy: 5.12 kWh
Usable Energy: 4.864 kWh
Operating Voltage: 44.8-57.6V
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Nominal Charge/Discharge Power: 2.56 kW
Max Discharge Power: 5.12 kW
Recommended Charge/Discharge Current: 50A
Max Discharge Current: 100A
Peak Discharge Current: 150A (for 2 minutes at 25°C)
Recommended Depth of Discharge (DOD): 95%
Net Weight: 55 kg
Dimensions (WDH): 710 x 165 x 640 mm
Charging Temperature Range: 0-55°C
Discharging Temperature Range: -20-55°C
Communication: CAN/RS485
Cycle Life: Unlimited cycles / 10 years
Protection Level: IP65
Expansion: Up to 5 units in parallel
Color: White
WIFI Module: Built-in, with APP and OTA function
Fire Protection: Built-in aerosol fire extinguisher
Certifications: UN38.3, IEC62619, IEC62040, CEC, CE RED
Compatible Inverters: SMA, Victron, Ingeteam, Delios, Goodwe, Solis, Deye, SAJ, Voltronic, Growatt, APS
Nominal Battery Energy: 5.12 kWh
Usable Energy: 4.864 kWh
Operating Voltage: 44.8-57.6V
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Nominal Charge/Discharge Power: 2.56 kW
Max Discharge Power: 5.12 kW
Recommended Charge/Discharge Current: 50A
Max Discharge Current: 100A
Peak Discharge Current: 150A (for 2 minutes at 25°C)
Recommended Depth of Discharge (DOD): 95%
Net Weight: 55 kg
Dimensions (WDH): 710 x 165 x 640 mm
Charging Temperature Range: 0-55°C
Discharging Temperature Range: -20-55°C
Communication: CAN/RS485
Cycle Life: Unlimited cycles / 10 years
Protection Level: IP65
Expansion: Up to 5 units in parallel
Color: White
WIFI Module: Built-in, with APP and OTA function
Fire Protection: Built-in aerosol fire extinguisher
Certifications: UN38.3, IEC62619, IEC62040, CEC, CE RED
Compatible Inverters: SMA, Victron, Ingeteam, Delios, Goodwe, Solis, Deye, SAJ, Voltronic, Growatt, APS
Delivery date: Monday, 10.02.2025
Product Code:
DynessH5B
Do you need help?
+40 735 080 844
- Description
- Download (1)
- Video (1)
- Reviews (0)
The Dyness PowerDepot H5B is a low-voltage energy storage solution designed for residential use. It utilizes reliable lithium iron phosphate (LFP) technology, ensuring maximum safety and a longer cycle life. This battery system is ideal for self-consumption and backup applications, with a scalable capacity ranging from 5.12kWh to 25.6kWh.
Key Features:
- Scalable Capacity: Expandable from 5.12kWh to 25.6kWh to meet various energy storage needs.
- Safety: Utilizes LFP technology for enhanced safety and longevity.
- Flexible Installation: Suitable for both floor and wall mounting.
- Smart Management: Equipped with smart energy management features for efficient operation.
- Durability: Designed to withstand various environmental conditions.
-
Dyness power module PowerDepot H5B Data Sheet EN
