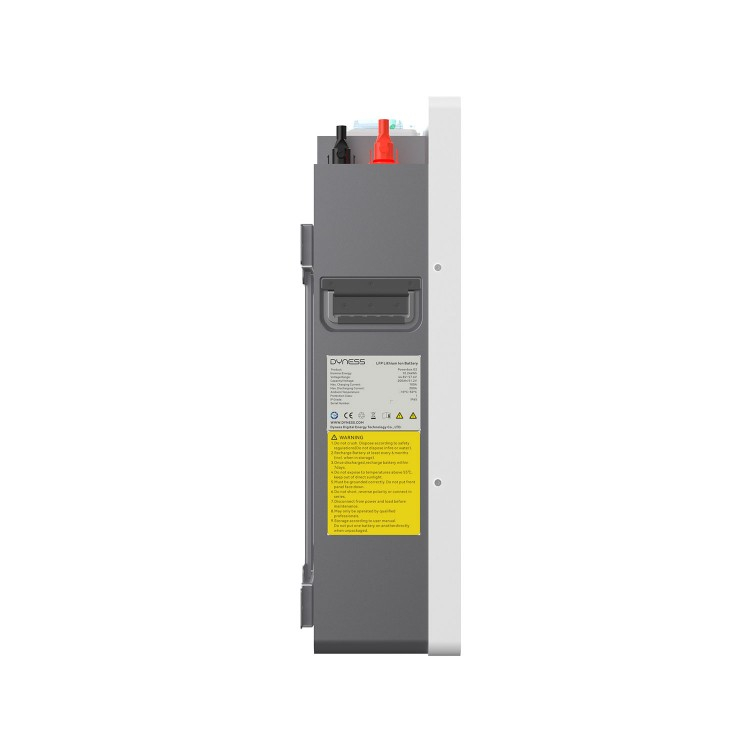

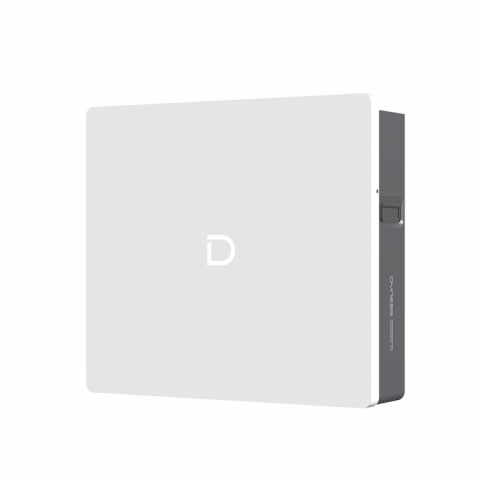

Dyness Powerbox G2 battery module / 51.2V 200Ah/10.24KWh
![Dyness Powerbox G2 battery module / 51.2V 200Ah/10.24KWh [1]](https://gomagcdn.ro/domains/poweracu.com/files/product/original/dyness-powerbox-g2-battery-module-180306.jpg "Dyness Powerbox G2 battery module / 51.2V 200Ah/10.24KWh [1]")
![Dyness Powerbox G2 battery module / 51.2V 200Ah/10.24KWh [2]](https://gomagcdn.ro/domains/poweracu.com/files/product/original/dyness-powerbox-g2-battery-module-843448.jpg "Dyness Powerbox G2 battery module / 51.2V 200Ah/10.24KWh [2]")
![Dyness Powerbox G2 battery module / 51.2V 200Ah/10.24KWh [0]](https://gomagcdn.ro/domains/poweracu.com/files/product/medium/dyness-powerbox-g2-battery-module-180306.jpg "Dyness Powerbox G2 battery module / 51.2V 200Ah/10.24KWh [0]")
![Dyness Powerbox G2 battery module / 51.2V 200Ah/10.24KWh [1]](https://gomagcdn.ro/domains/poweracu.com/files/product/medium/dyness-powerbox-g2-battery-module-843448.jpg "Dyness Powerbox G2 battery module / 51.2V 200Ah/10.24KWh [1]")
Battery Type: LiFePO4
Nominal Battery Energy: 10.24 kWh
Usable Energy: 9.728 kWh
Operating Voltage: 44.8-57.6V
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah
Nominal Charge/Discharge Power: 5.12 kW
Max Discharge Power: 10.24 kW
Recommended Charge/Discharge Current: 100A
Max Discharge Current: 200A
Peak Discharge Current: 300A (for 2 minutes at 25°C)
Recommended Depth of Discharge (DOD): 95%
Net Weight: 95 kg (without glass front panel), 98 kg (with glass front panel)
Dimensions (WDH): 710 x 165 x 640 mm
Charging Temperature Range: 0-55°C (with heating function)
Discharging Temperature Range: -20-55°C
Communication: CAN/RS485
Cycle Life: Unlimited cycles / 10 years
Protection Level: IP65
Expansion: Up to 40 units in parallel
Color: White
WIFI Module: Built-in, with APP and OTA function
Fire Protection: Built-in aerosol fire extinguisher
Certifications: UN38.3, IEC62619, IEC62040, CEC, CE RED
Compatible Inverters: SMA, Victron, Ingeteam, Delios, Goodwe, Solis, Deye, SAJ, Voltronic, Growatt, APS
Nominal Battery Energy: 10.24 kWh
Usable Energy: 9.728 kWh
Operating Voltage: 44.8-57.6V
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah
Nominal Charge/Discharge Power: 5.12 kW
Max Discharge Power: 10.24 kW
Recommended Charge/Discharge Current: 100A
Max Discharge Current: 200A
Peak Discharge Current: 300A (for 2 minutes at 25°C)
Recommended Depth of Discharge (DOD): 95%
Net Weight: 95 kg (without glass front panel), 98 kg (with glass front panel)
Dimensions (WDH): 710 x 165 x 640 mm
Charging Temperature Range: 0-55°C (with heating function)
Discharging Temperature Range: -20-55°C
Communication: CAN/RS485
Cycle Life: Unlimited cycles / 10 years
Protection Level: IP65
Expansion: Up to 40 units in parallel
Color: White
WIFI Module: Built-in, with APP and OTA function
Fire Protection: Built-in aerosol fire extinguisher
Certifications: UN38.3, IEC62619, IEC62040, CEC, CE RED
Compatible Inverters: SMA, Victron, Ingeteam, Delios, Goodwe, Solis, Deye, SAJ, Voltronic, Growatt, APS
Delivery date: Monday, 10.02.2025
Product Code:
DynessG2
Do you need help?
+40 735 080 844
- Description
- Download (1)
- Video (1)
- Reviews (0)
The Dyness Powerbox G2 is a versatile low-voltage energy storage solution designed for residential use. It supports up to 40 parallel units, offering a scalable capacity from 10.24kWh to 409.6kWh
Key features include:- Flexible Expansion: Easily scalable to meet varying energy needs without the need for a HUB.
- Automatic Self-Heating: Operates efficiently in temperatures ranging from -20°C to 55°C, ensuring reliable performance in diverse climates.
- Ultra Safe: Equipped with smart fire suppression technology that activates within 5 seconds and an automatic pressure relief system for enhanced safety.
- High Output: Delivers a maximum output of 10.24kW with a continuous current of 200A, supporting robust power needs.
- Compact Design: The slim 6.5-inch design allows for flexible installation in limited spaces.
- Durability: IP65-rated for protection against dust and water, making it suitable for outdoor installations and harsh weather conditions.
These features make the Powerbox G2 an efficient and reliable choice for home energy storage, combining safety, flexibility, and high performance.
-
Dyness Powerbox G2 Technical Data EN
Download
