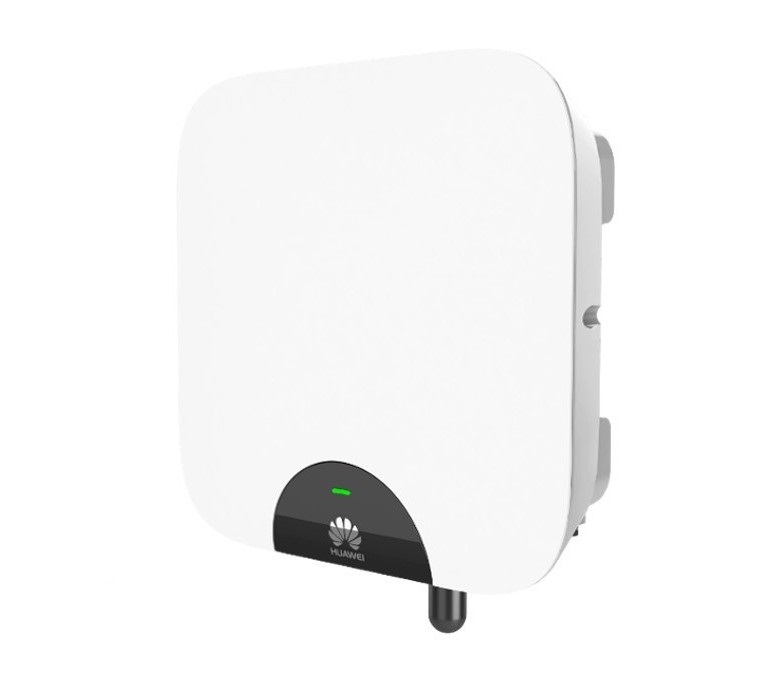

![HUAWEI SUN2000-5KTL-M1 Solar Inverter [1]](https://gomagcdn.ro/domains/e-acumulatori/files/product/original/hybrid-inverter-huawei-fusion-home-3ktl-13992-8847223289713801.jpg "HUAWEI SUN2000-5KTL-M1 Solar Inverter [1]")
Maximum Power: 5000W
Working Voltage: 400V
Number of MPPT: 2
MPPT Working Voltage: 140 V ~ 980 V
Inverter Type: Hybrid, High Voltage Li-Ion Batteries
Huawei integrates the latest digital and internet technology with residential solar technology.
Bring optimized photovoltaic power generation, built-in plug & play battery interface and smart energy management to your home.
Working Voltage: 400V
Number of MPPT: 2
MPPT Working Voltage: 140 V ~ 980 V
Inverter Type: Hybrid, High Voltage Li-Ion Batteries
Huawei integrates the latest digital and internet technology with residential solar technology.
Bring optimized photovoltaic power generation, built-in plug & play battery interface and smart energy management to your home.
Delivery date: Europe, 5-10 days. Other countries - please check with our sales representative
Product Code:
pac-SUN2000-5KTL-M1
Do you need help?
+40 745 775 777
- Description
- Reviews (0)
The Huawei SUN2000-5KTL-M1 is a smart, three-phase hybrid inverter designed for residential and small commercial solar systems. With dual MPPTs, battery storage support, and 98.4% peak efficiency, it ensures maximum energy yield and system flexibility.
This inverter is compatible with Huawei’s Smart ESS batteries and FusionSolar monitoring platform, offering real-time insights, remote control, and seamless integration with optimizers for module-level performance.
✅ Key Benefits
- High efficiency and flexible PV design
- Battery-ready for energy storage integration
- Built-in arc fault and surge protection
- Natural cooling and silent operation
- IP65-rated for outdoor use
⚙️ Technical Specifications
| Category | Specification |
|---|---|
| Max. Efficiency | 98.4% |
| European Efficiency | 97.5% |
| Max. PV Input Power | 7,500 Wp |
| Max. Input Voltage | 1,100 V |
| MPPT Voltage Range | 140 V – 980 V |
| Startup Voltage | 200 V |
| Rated Input Voltage | 600 V |
| MPPTs / Inputs | 2 MPPTs / 2 inputs |
| Max. Input Current / MPPT | 13.5 A |
| Battery Compatibility | Huawei Smart String ESS (5–30 kWh) |
| Battery Voltage Range | 600 – 980 V |
| Max. Battery Charge Power | 10,000 W |
| Max. Battery Discharge Power | 5,000 W |
| Grid Connection | Three-phase |
| Rated Output Power | 5,000 W |
| Max. Apparent Power | 5,500 VA |
| Output Voltage | 230/400 V, 3W/N+PE |
| Max. Output Current | 8.5 A |
| Cooling | Natural convection |
| Protection Rating | IP65 |
| Dimensions / Weight | 525 × 470 × 146.5 mm / 17 kg |
| Communication | RS485, WLAN, Ethernet (via Smart Dongle), 4G (optional) |
| Optimizer Compatibility | Yes – SUN2000-450W-P |
| Certifications | EN/IEC 62109-1/-2, IEC 62116, VDE-AR-N-4105, CEI 0-21, G99, AS 4777, etc. |
