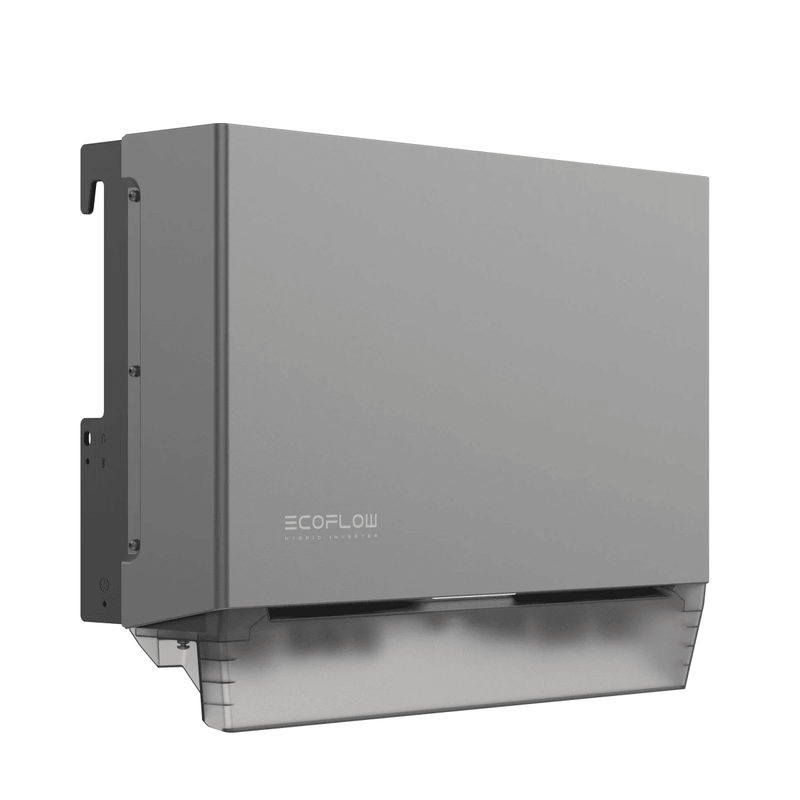

EcoFlow PowerOcean Plus Hybrid Inverter 20 kW three-phase – Complete solution for photovoltaic systems with high autonomy requirements

20 kW three-phase hybrid inverter, part of the PowerOcean Plus range, optimized for high-capacity residential, commercial and industrial systems. Includes 3 MPPT trackers, automatic switching for instant backup, and rugged design for outdoor installation.

Integrated technologies

• Three MPPT trackers, compatible with up to 4 PV chains – max. 40 kW solar input.
• Internal bypass and fast switching (< 20 ms) for continuity when the network goes down.
• Integrated Smart Meter inverter, eliminating the need for an external meter – simplified installation.
• IP65 protection and impact-resistant construction, self-heating for low temperatures and fire prevention.

Competitive advantages

• AC power up to 20 kW (20 kVA), sufficient for energy-intensive systems – EV, pumps, HVAC.
• PV input up to 40 kW – ideal for extended roofs.
• Up to 97–98% efficiency, 99.9% MPPT.
• Compatible with LFP batteries up to 61.2 kWh, 15-year warranty and > 6000 cycles.

Key technical data
