GENERAL
Charger Application: General Purpose
DC Voltage: 12 V
Length: 100mm
Width: 249mm
Height: 180mm
Input Voltage: 230 V
Frequency: 45 – 65 Hz
Operating Temperature Range: -20 to 60°C
Number of outputs: 2
Warranty: 5 Years
Data sheet - click here
Delivery date: 20 days

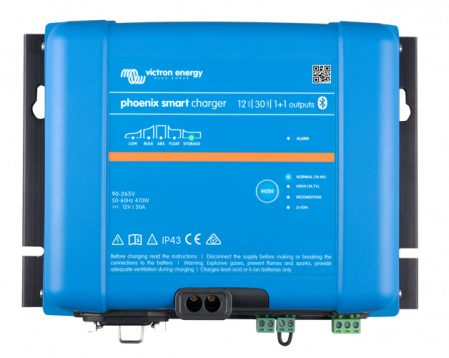

With boat owners in mind this adaptive 5-step charger can provide either 30A or 50A of charge to each of three battery banks. Or the Phoenix 1+1 model provides 3A to the starter-battery, the rest to the ‘house’ bank. 24V models are available with 16A/25A charge. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features – see the datasheet.
Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings
and to update the charger when new software features become available.
The second output, limited to approximately 3A and with a slightly lower output voltage, is intended
to top up a starter battery.
Each output can supply the full rated output current. But the total of the 3 outputs combined can never
exceed the current rating of the charger.
The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage
when the DC current increases. Please see the manual for details.
The Phoenix Smart Charger features our well-known ‘adaptive’ battery management system that can
be preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimise the
charge process relative to the way the battery is being used.
When only shallow discharges occur (a yacht connected to shore power for example) the absorption
time is kept short in order to prevent overcharging of the battery. After a deep discharge the
absorption time is automatically increased to make sure that the battery will be fully charged.
If, in order to quickly charge a battery, a high charge current in combination with a high absorption
voltage has been chosen, the charger will prevent damage due to excessive gassing by automatically
limiting the rate of voltage increase once the gassing voltage has been reached (see the charge curve
between 14,4 V and 15,0 V in fig. 2).
The Storage Mode kicks in whenever the battery has not been subjected to discharge during 24 hours.
In the Storage Mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.
Charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-ion BMS to the remote on-off port.
Alternatively full control of voltage and current can be achieved with Bluetooth.
The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface.
Three preprogrammed algorithms can be selected with the mode button (see specifications).

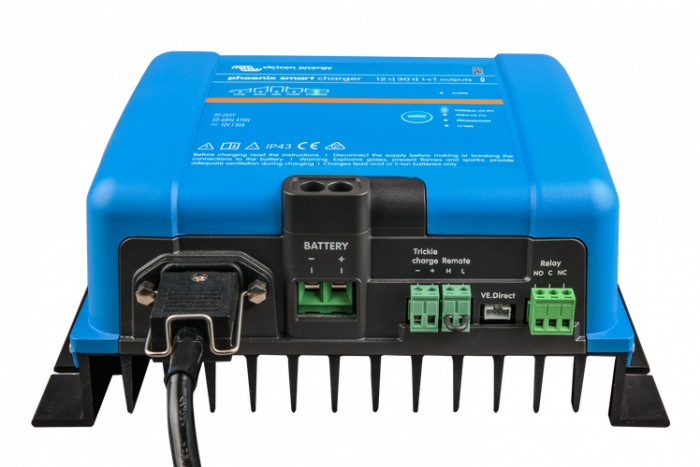

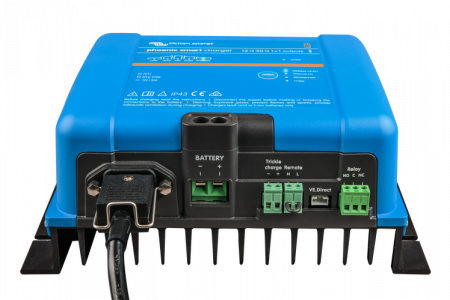

The remote on/off consists of two terminals: Remote H and Remote L.
A remote on/off switch or relay contact can be connected between H and L.
Alternatively, terminal H can be pulled high, or terminal L can be pulled low.
See manual for details.
For a wired data connection to a Color Control panel, PC or other devices.
Please see the VictronConnect app under Downloads / Software on our website.
Can be programmed using the VE.Direct interface or a Bluetooth enabled device to trip on an alarm or other events.
