Huawei SUN2000-3KTL-L1 solar inverter, a high-efficiency single-phase hybrid inverter designed for residential solar systems:
Delivery date: Europe, 5-10 days. Other countries - please check with our sales representative
- Description
- Reviews (0)

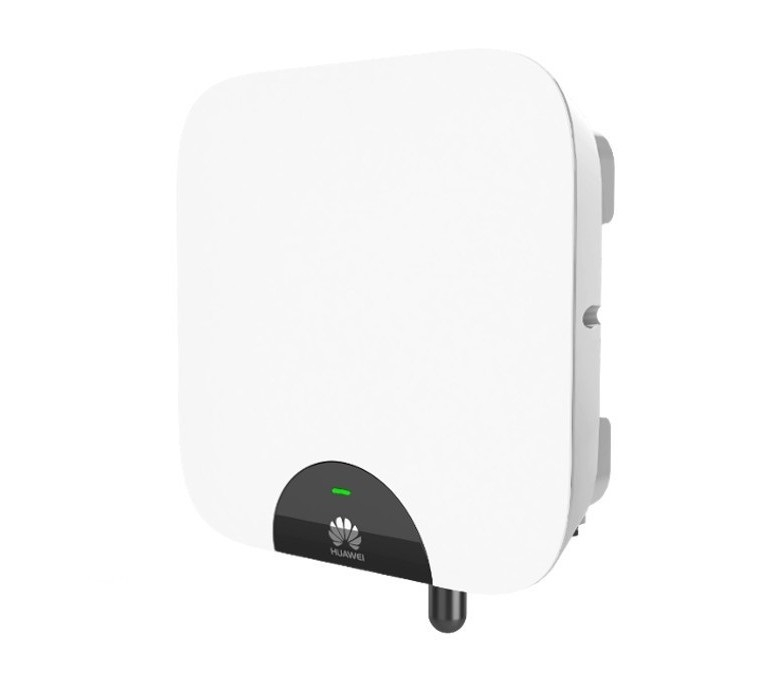

Huawei SUN2000-3KTL-L1 Solar Inverter
Smart, Efficient, and Ready for the Future of Energy
The Huawei SUN2000-3KTL-L1 is a high-performance single-phase hybrid inverter designed for residential solar systems. With cutting-edge features like dual MPPT tracking, battery storage compatibility, and AI-powered arc fault protection, this inverter delivers unmatched efficiency, safety, and flexibility.
Whether you're powering a smart home or building a sustainable energy solution, the SUN2000-3KTL-L1 ensures optimal performance and seamless integration with Huawei's FusionSolar ecosystem.
🔧 Why Choose SUN2000-3KTL-L1?
- ⚡ Up to 98.3% efficiency – maximum energy harvest from your PV system
- 🔋 Battery-ready – compatible with Huawei LUNA2000 storage systems
- 🌐 Smart connectivity – FusionSolar App, WLAN, RS485, Ethernet, and optional 4G
- 🛡️ AI-powered safety – arc fault detection and rapid shutdown
- 🌦️ IP65 protection – reliable outdoor operation in any climate
- 🔄 Dual MPPTs – flexible string configuration and shading tolerance
⚙️ Huawei SUN2000-3KTL-L1 – Technical Specifications
| Category | Specification |
|---|---|
| Model | SUN2000-3KTL-L1 |
| Max. Efficiency | 98.3% |
| European Efficiency | 97.3% |
| Recommended PV Power | 4500 Wp |
| Max. Input Voltage | 600 V |
| Startup Voltage | 100 V |
| MPPT Voltage Range | 90 V – 560 V |
| Rated Input Voltage | 360 V |
| Max. Input Current (per MPPT) | 12.5 A |
| Max. Short-Circuit Current | 18 A |
| Number of MPPTs | 2 |
| Inputs per MPPT | 1 |
| Battery Compatibility | Huawei LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1 |
| Battery Voltage Range | 350 – 560 V DC |
| Max. Battery Charge Power | 5000 W |
| Max. Battery Discharge Power | 3300 W |
| Grid Connection | Single-phase |
| Rated Output Power | 3000 W |
| Max. Apparent Power | 3300 VA |
| Rated Output Voltage | 220 / 230 / 240 V AC |
| Rated Grid Frequency | 50 / 60 Hz |
| Max. Output Current | 15 A |
| Power Factor | Adjustable 0.8 leading to 0.8 lagging |
| THD (Total Harmonic Distortion) | ≤ 3% |
| Backup Power Support | Yes (via Backup Box-B0 or SmartGuard-63A-S0) |
| Cooling | Natural convection |
| Display & Monitoring | LED indicators, FusionSolar App, built-in WLAN |
| Communication | RS485, WLAN, Ethernet (via Smart Dongle-WLAN-FE), 4G (via Smart Dongle-4G) |
| Operating Temperature | –25°C to +60°C (derating above 45°C) |
| Humidity Range | 0% – 100% RH (non-condensing) |
| Max. Altitude | 4000 m (derating above 2000 m) |
| Dimensions (W × H × D) | 365 × 375 × 156 mm |
| Weight | 12.0 kg (with mounting brackets) |
| IP Rating | IP65 – suitable for outdoor installation |
| Nighttime Power Consumption | < 2.5 W |
| Optimizer Compatibility | Yes – SUN2000-450W-P2, SUN2000-600W-P |
| Certifications | EN/IEC 62109-1/-2, EN 50549-1, VDE-AR-N-4105, G98/G99, CEI 0-21, IEC61727, IEC62116 |
