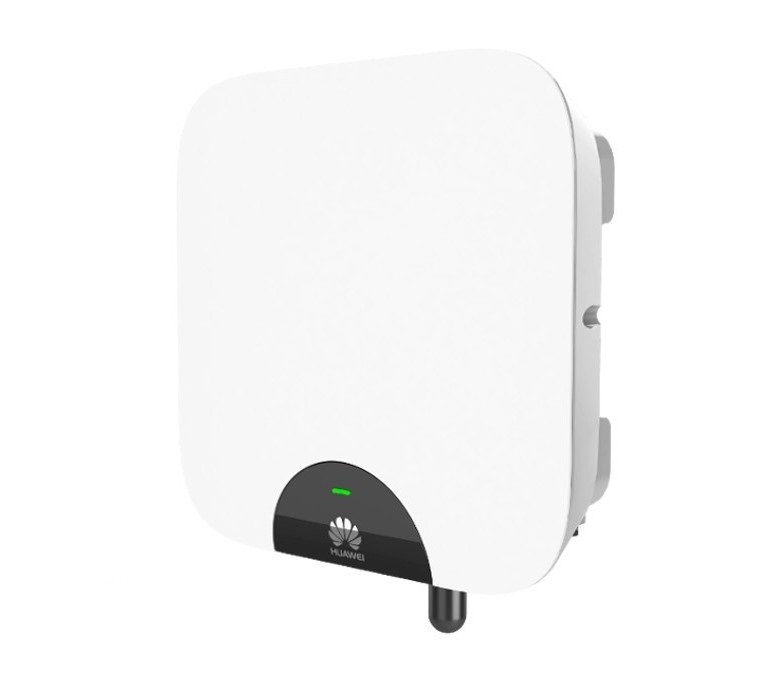

![HUAWEI SUN2000 12KTL M2 Solar Inverter [1]](https://gomagcdn.ro/domains/e-acumulatori/files/product/original/hybrid-inverter-huawei-fusion-home-3ktl-13992-884722328971846416499943.jpg "HUAWEI SUN2000 12KTL M2 Solar Inverter [1]")
Maximum Power: 12,000W
Working Voltage: 400V
Number of MPPT: 2
MPPT Working Voltage: 160 V ~ 950 V
Inverter Type: On-grid
Huawei integrates the latest digital and internet technology with residential solar technology.
Bring optimized photovoltaic power generation, built-in plug & play battery interface and smart energy management to your home.
Delivery date: Europe, 5-10 days. Other countries - please check with our sales representative
- Description
- Reviews (0)
The Huawei SUN2000-12KTL-M2 is a powerful and intelligent three-phase string inverter designed for medium to large residential and commercial PV systems. With dual MPPTs, 98.5% peak efficiency, and advanced safety features, it ensures high energy yield, system reliability, and long-term performance.
Its compact design, natural cooling, and IP65 protection make it ideal for outdoor installations, while seamless integration with Huawei optimizers and the FusionSolar platform enables smart monitoring and control.
✅ Key Benefits
- High efficiency and flexible PV design
- Built-in arc fault and PID recovery
- Smart monitoring via FusionSolar App
- Plug-and-play communication options
- Optimizer-ready for module-level performance
⚙️ Technical Specifications
| Category | Specification |
|---|---|
| Max. Efficiency | 98.5% |
| European Efficiency | 98.0% |
| Max. PV Input Power | 18,000 Wp |
| Max. Input Voltage | 1,080 V |
| MPPT Voltage Range | 160 V – 950 V |
| Startup Voltage | 200 V |
| Rated Input Voltage | 600 V |
| MPPTs / Inputs | 2 MPPTs / 4 inputs |
| Max. Input Current / MPPT | 22 A |
| Max. Short-Circuit Current | 30 A |
| Rated Output Power | 12,000 W |
| Max. Apparent Power | 13,200 VA |
| Output Voltage | 220/380 V, 230/400 V, 3W + N + PE |
| Max. Output Current | 20 A |
| Cooling | Natural convection |
| Protection Rating | IP65 |
| Dimensions / Weight | 525 × 470 × 262 mm / 25 kg |
| Communication | RS485, WLAN, Ethernet (via Smart Dongle), 4G (optional) |
| Optimizer Compatibility | Yes – SUN2000-450W-P |
| Integrated Protections | Arc fault, surge protection (Type II), PID recovery, residual current monitoring |
| Certifications | EN/IEC 62109-1/-2, G98, G99, CEI 0-21, VDE-AR-N-4105, IEC61727, IEC62116 |
