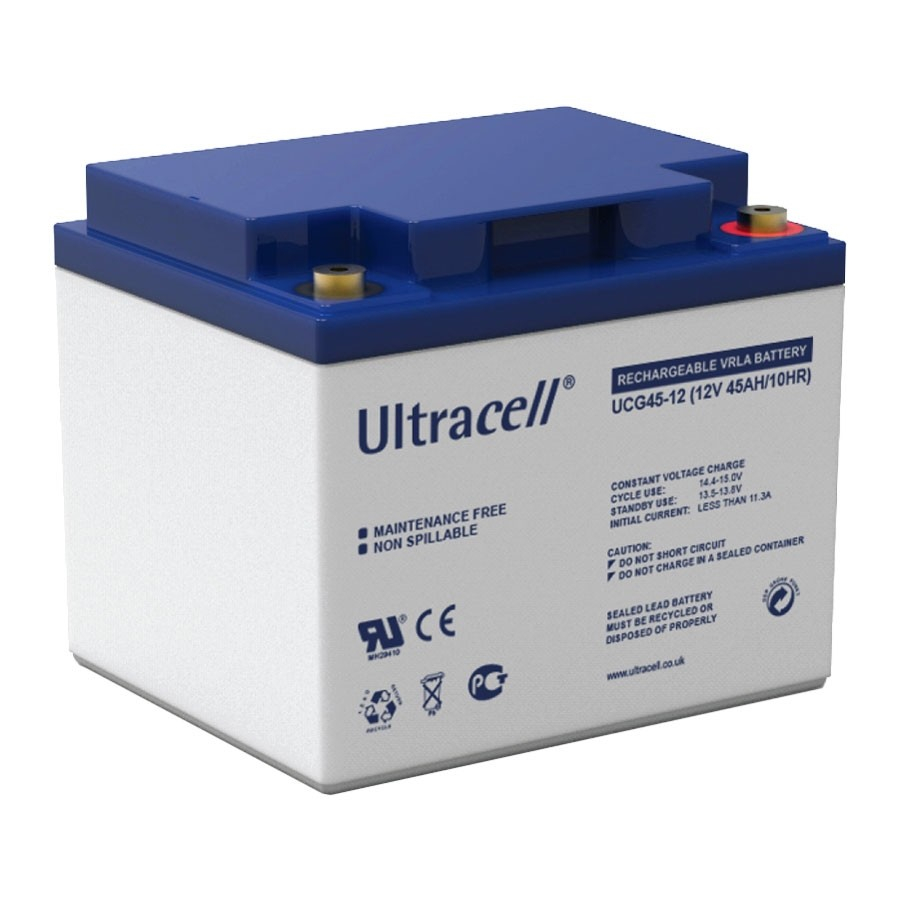

VRLA Ultracell Deep Cycle GEL 12V, 45Ah Rechargeable Battery UCG45-12 F6

VRLA Ultracell GEL GEL Deep Cycle 12V 45 Ah UCG45-12

UCG Gel series is part of the Deep Cycle battery family, they are sealed, dry, maintenance-free, slowly discharging gel batteries. They are suitable for applications that have relatively stable load (e.g. photovoltaic applications, UPS, telecommunication systems, security systems, medical equipment, emergency lighting).

Technical specifications:
Voltage 12V
Capacity 46.8Ah @ 20hr, 45Ah @ 10hr, 36Ah @ 5hr, 24.8Ah @ 1hr
Electrolyte: H2SO4 GEL
Maximum discharge current: 450A (5s)
Initial charging current: less than 11.25A
Internal resistance: Approx 9.6mΩ
Connectors: silver copper alloy
Charging temperature: 0°C and 40°C
Discharge temperature: -15°C to 50°C.
Storage temperature: -15°C to 40°C
Length 197 mm
Width 165 mm
Height 170 mm
Weight 15.5 kg
12 months warranty

Advantages of Ultracell Gel batteries
Maintenance free
Expected lifetime: up to 12 years (depending on application)

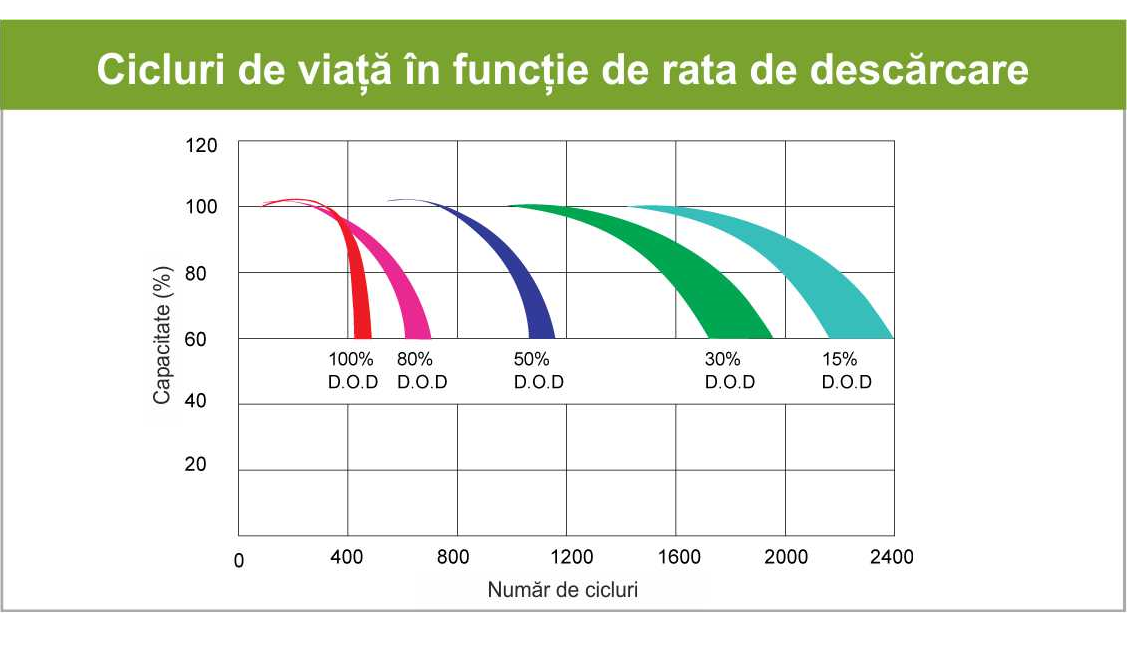

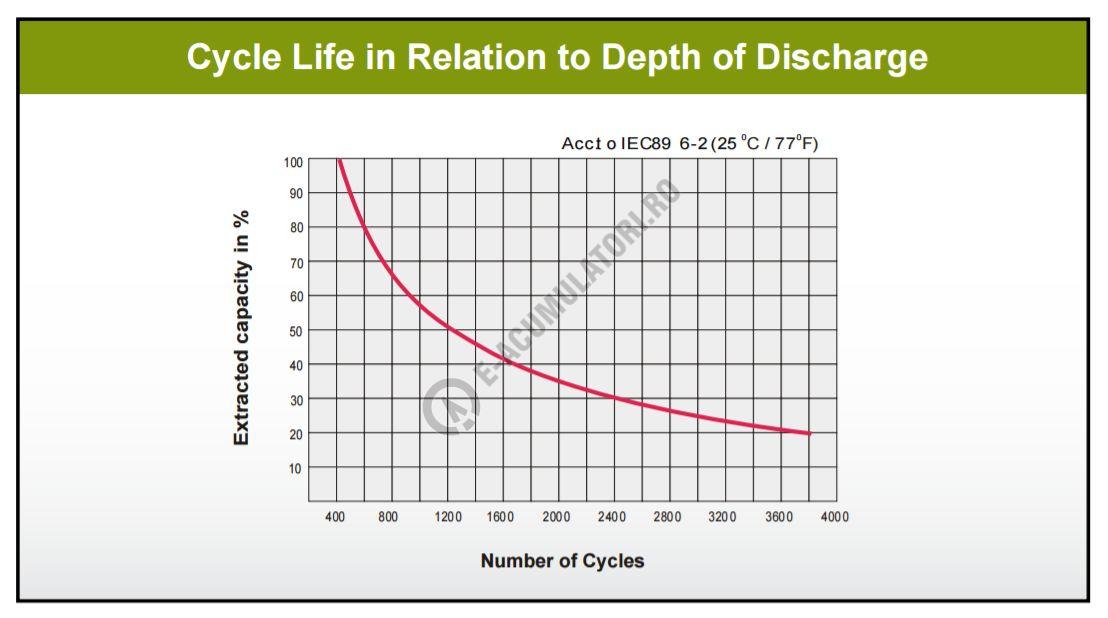

More than 1800 charge/discharge cycles (up to 30% DOD)

Applications
Emergency Lighting, Alarms and Security, Aircraft Signals, Industrial Power Backup, UPS, Telecom, Medical Devices, Marine Applications, Aerospace Applications, Isolated Systems
